AMG-10OPHA03T2
800x600 pixels
Brightness:300 nits
Resistive Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Model Name | AMG-10OPHA03T2 |
Screen Size | 10.4" |
Active Display Area (mm) | 228.4 (H) x 175.5 (V) |
Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800x600 |
Contrast Ratio | 500:1 |
Display Color | 16.7M colors |
Brightness (CD/㎡) | 300 |
Backlight | LED |
Viewing Angles (CR =10) | 150 (H); 110 (V) |
Response Time(Typ.Tr+Tf) | 30ms |

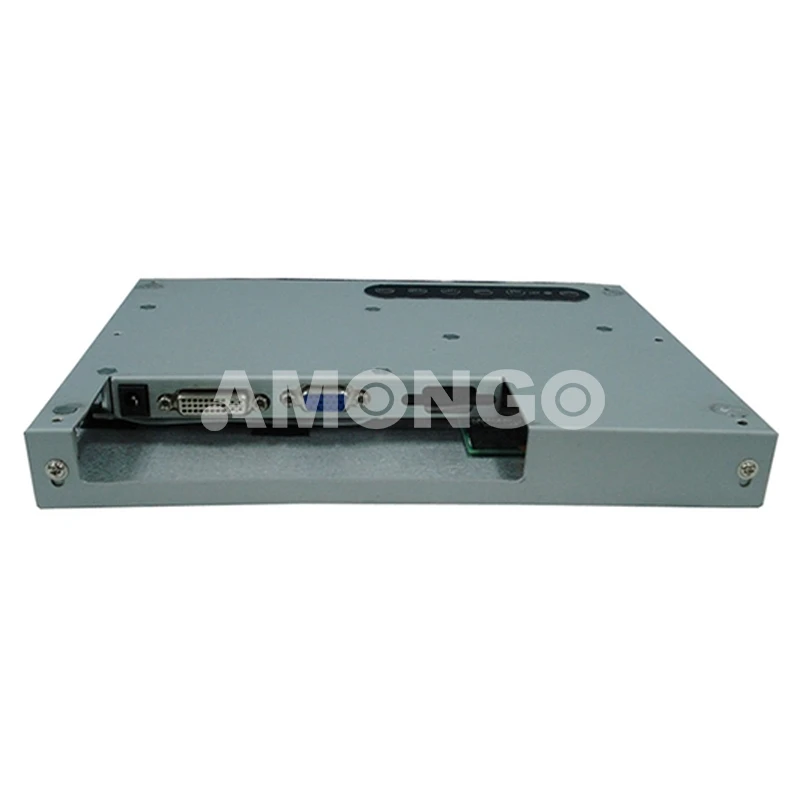

Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 230.5x181.5x29.9 |
Operating Temperature | -10～60℃ |
Storage Temperature | -20～70℃ |
Relative Humidity | 5(%RH)～90(%RH) |
