Branded LCD panels with perfect image quality and wide viewing angles;
Built with industrial-grade components for a reliable 24/7 continuously operation;
LED backlight for low power consumption to save more energy;
Sunlight readable with brightness up to 1000 nits;
PCAP touchscreen, Full flat surface; Front IP65; Optical bonding technology;
Customization solution available
Model Name | AMG-15IPTL01T4 |
Screen Size | 15.6" |
Active Display Area(mm) | 344.232(H)x193.536(V) |
Pixel Pitch(mm) | 0.252(H)x0.252(V) |
Display Mode | Normally white |
Display Color | 16.7M |
Display Resolution(pixel) | 1366x768 |
Contrast Ratio | 500:1 |
Brightness | 1000nits |
Backlight | LED |
Viewing Angles(CR=10) | 170(H);160(V) |
Response Time(Typ.Tr+Tf) | 8ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered Glass | Optional |

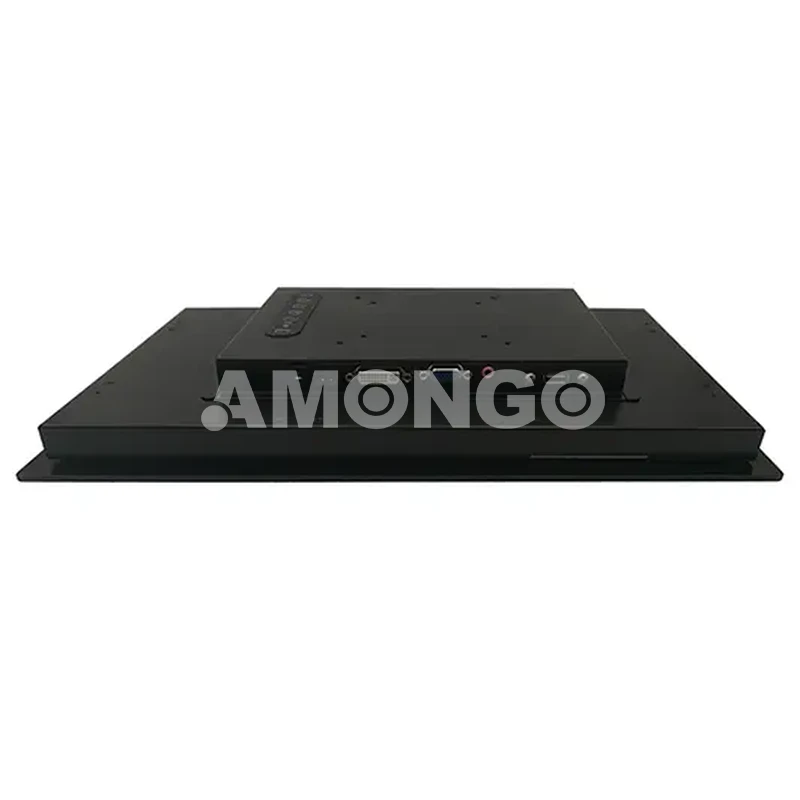

Signal Connector | VGA/DVI-D/HDMI/Audio |
Power Consumption | DC 12V |
Touch Controller | USB |
Dimension(VxHxT)mm | 401x246x26.5 |
Operating Temperature | 0~50℃(not clotted) |
Storage Temperature | -20~60℃(not clotted) |
Relative Humidity | 5~90(%RH) |
