Branded LCD panels with perfect image quality and wide viewing angles;
Built with industrial-grade components for a reliable 24/7 long time operation;
Wide range operation temperature from -30~85 ℃;
Privacy Film for end-user security;
Customization solution available
Model Name | AMG-17OPHY01T1 |
Screen Size | 17" |
Active Display Area(mm) | 337.920(H)x270.336(V) |
Pixel Pitch(mm) | 0.264(H)x0.264(V) |
Display Mode | Normally white |
Display Resolution(pixel) | 1280x1024 |
Contrast Ratio | 1000:1 |
Brightness | 350nits |
Backlight | LED |
Viewing Angles(CR=10) | 170(H);160(V) |
Response Time(Typ.Tr+Tf) | 5ms |
Touch Screen | PCAP Touch(10 points) |
Electromagnetic Pen | Optional |
Privacy Film | Optional |

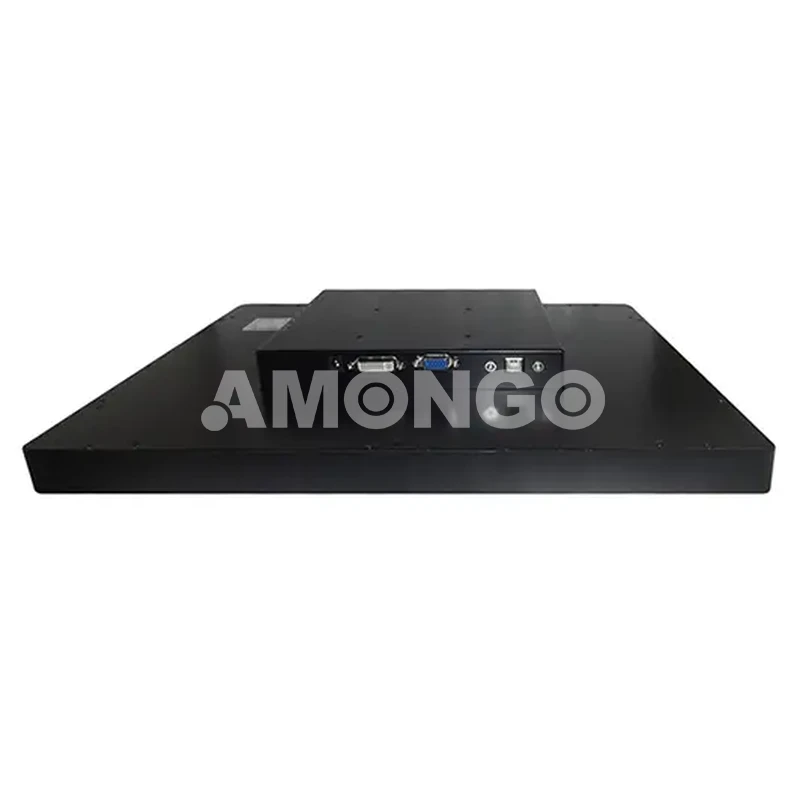

Signal Connector | VGA/DVI-D/USB |
Power Consumption | DC 12V |
Touch Controller | USB |
Dimension(VxHxT) | 446x321x55 |
Operating Temperature | -30~85℃ |
Storage Temperature | -30~85℃ |
Relative Humidity | 5(%RH)~90(%RH) |
