Tempered glass 3MM
Support embedded / VESA installation
Surface hardness MoHs 7
Application:
AFC / Non-cash equipment / Kiosk etc
| Technical Specification | |
| LCD | |
| Model Name | AMG-15OPTD01G1 |
| Screen Size | 15" |
| Active Display Area(mm) | 344.2176(H) x 193.6224(V) |
| Pixel Pitch(mm) | 0.0298(H)x0.0896(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 3840x2160 |
| Contrast Ratio | 16.7M |
| Display Color | 1400:01:00 |
| Brightness | 500nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Optional | |
| Touch Screen | Optional |
| Light Sensor | Optional |
| Tempered glass | 3MM |

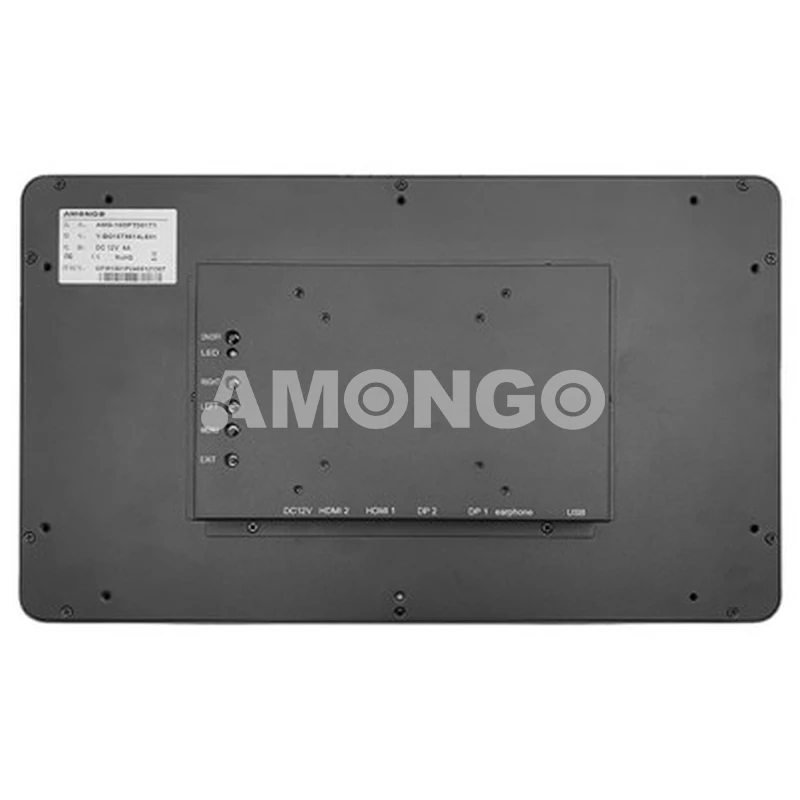

| I/O Interface | |
| Signal Connector | HDMI/DP |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 390.8 x 241.1x 35 |
| Mechanical | |
| Operating Temperature | 0~50 ℃(non-condensation) |
| Storage Temperature | -20~60℃(non-condensation) |
| Relative Humidity | 5~90(%RH) |
