Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7 long time operation
Touchscreen can be optional from PCAP, Resistive etc

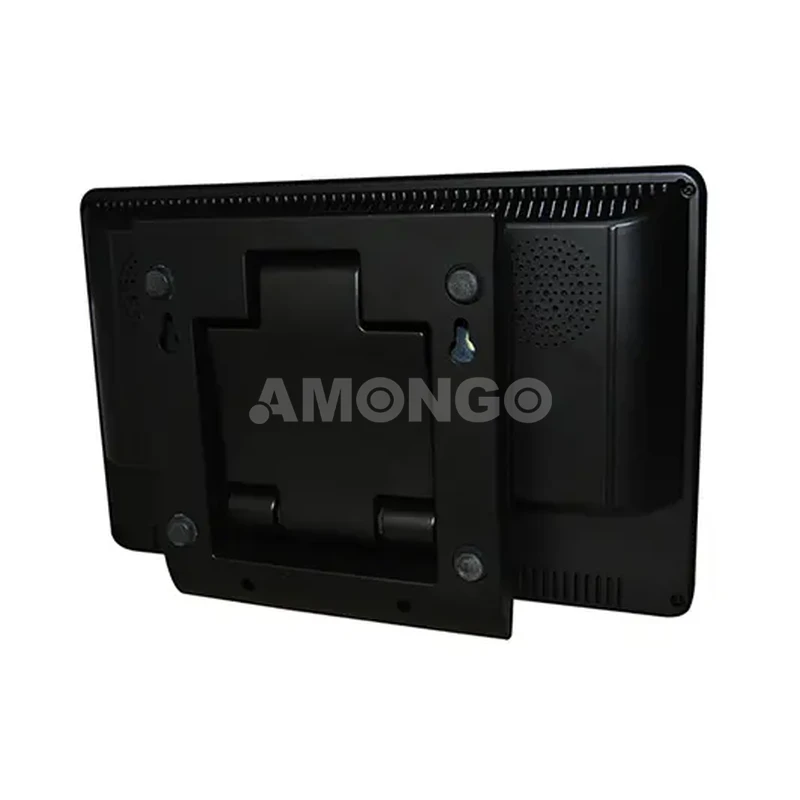

Easy-to-install in a desktop holder with VESA holes backside
Good choice for application for console or control center
Customization solution available
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7 long time operation
Touchscreen can be optional from PCAP, Resistive etc
Easy-to-install in a desktop holder with VESA holes backside
Good choice for application for console or control center
Customization solution available
Model Name | AMG-10IPAM02T1 |
Screen Size | 10.1" |
Display Resolution (pixel) | 1024x600 |
Contrast Ratio | 500:1 |
Aspect Ratio | 16:9 |
Touch screen(optional) | 4-Wire Resistive Touch(5-Wire for Optional) |
Brightness (cd/㎡) | 250/450nits |
Backlight | LED |
Viewing Angles (CR =10) | 140Hx90V |
Power Consumption | ≤8W |
Dimension(VxHxT) | 255x150x236(stretching) |
Touch Interface | USB (RS232 for Optional) |
Input Voltage | DC12V±15% |
HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) |
Operating Systems Support | Windows 7 |
Operating Temperature | -20～50℃ |
Storage Temperature | -30～65℃ |
Relative Humidity | 5(%RH)～90(%RH) |
