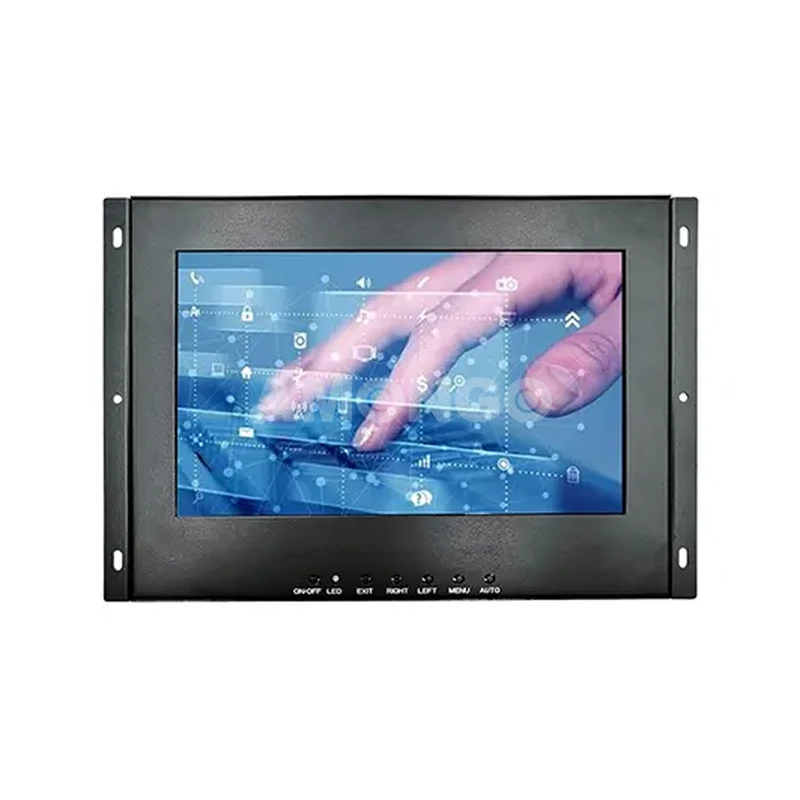

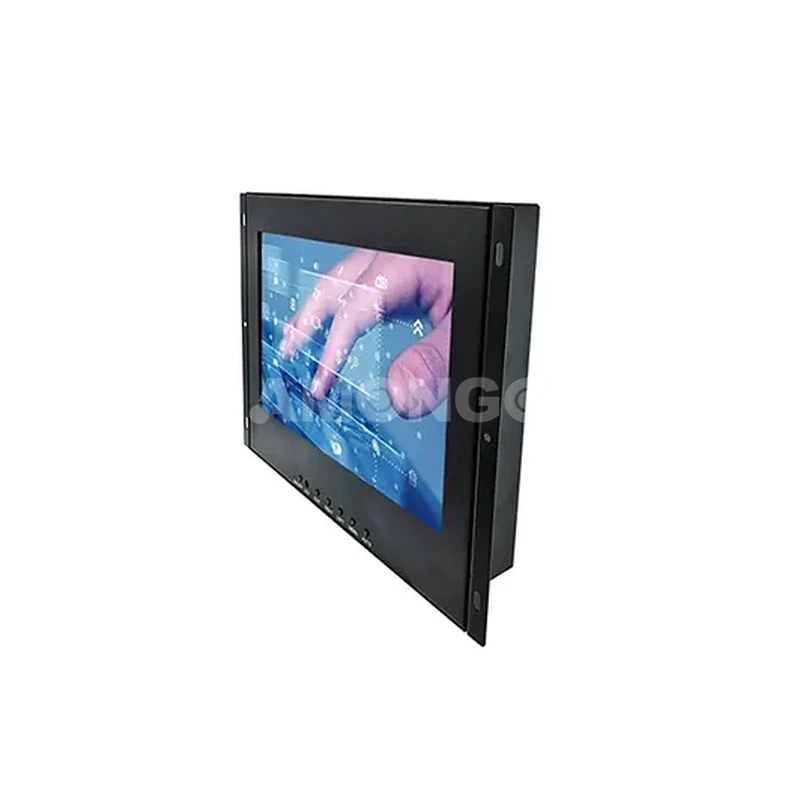

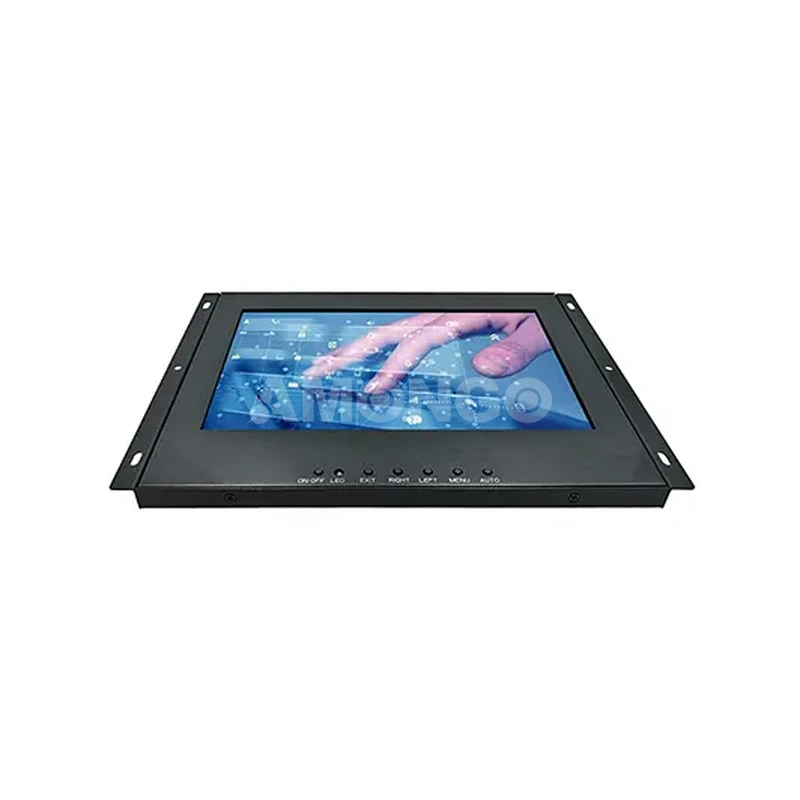

The 10.1 inch rack mount industrial monitor AMG-10IPDB01T1 developed by Amongo Display is a suitable model to be installed in places with demanding environment
Original lcd panels with perfect image quality and long life span, industrial-grade components supporting long time running;
10-points capacitive touch technology with surface Mohs 7 hardness;
Robust mechanical design to ensure stable quality and function in harsh working conditions.

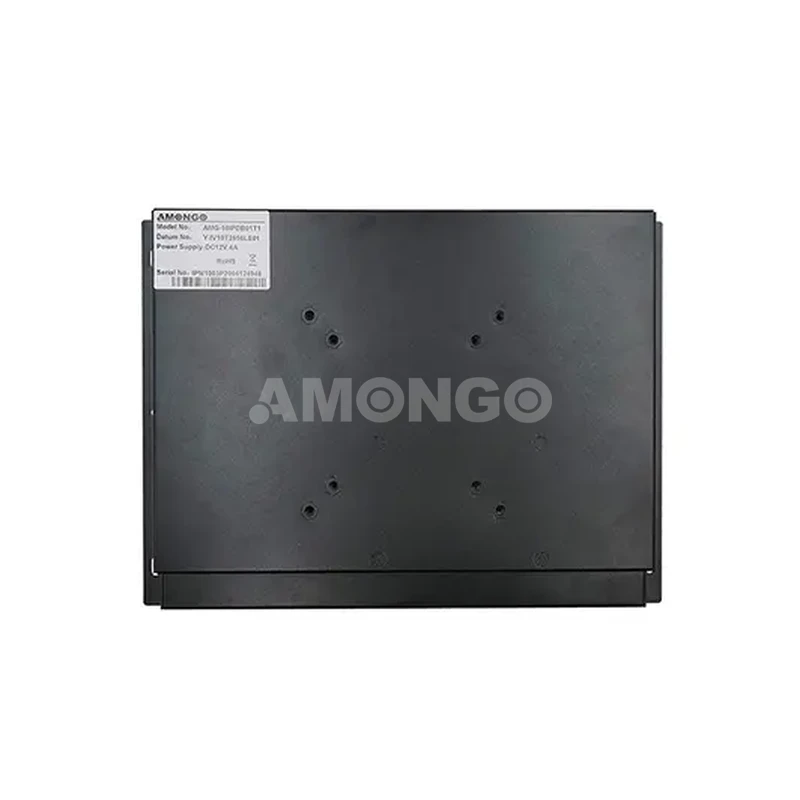

Easy-to-install with rack mounting enclosures and vesa holes
Customization service available
Model Name | AMG-10IPDB01T1 |
Screen Size | 10.1" |
Active Display Area(mm) | 216.96(H)x135.6(V) |
Pixel Pitch(mm) | 0.1695(H)x0.1695(V) |
Display Resolution (pixel) | Normally Black |
Contrast Ratio | 1280x800 |
Display Mode | 16.7M |
Touch screen(optional) | 800:1 |
Brightness (cd/㎡) | 350nits |
Backlight | LED |
Viewing Angles (CR=10) | 170(H);170(V) |
Response Time(Typ.Tr+Tf) | 25ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optional |
Dimension(VxHxT) | 288x209x35 |

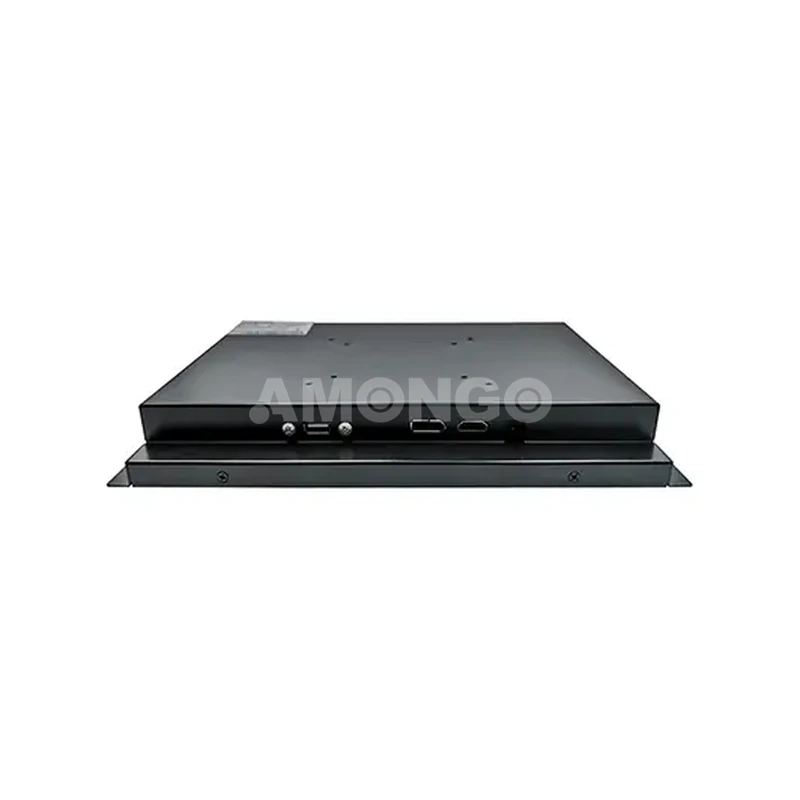

Signal Connector | HDMI/DP |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | -20～70℃(non-condensation) |
Storage Temperature | -30～80℃(non-condensation) |
Relative Humidity | 5(%RH)～90(%RH) |
