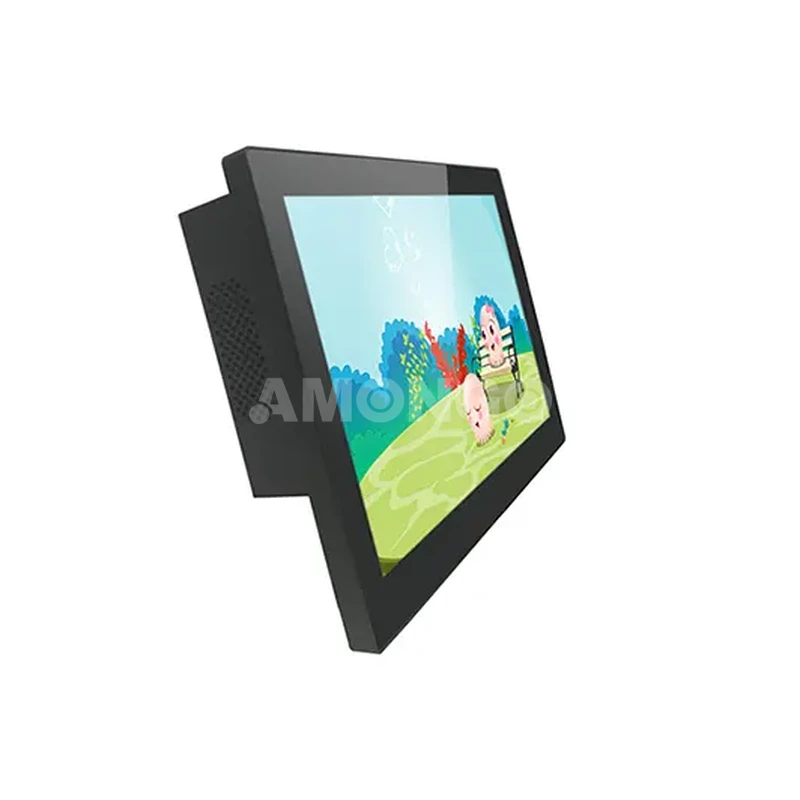

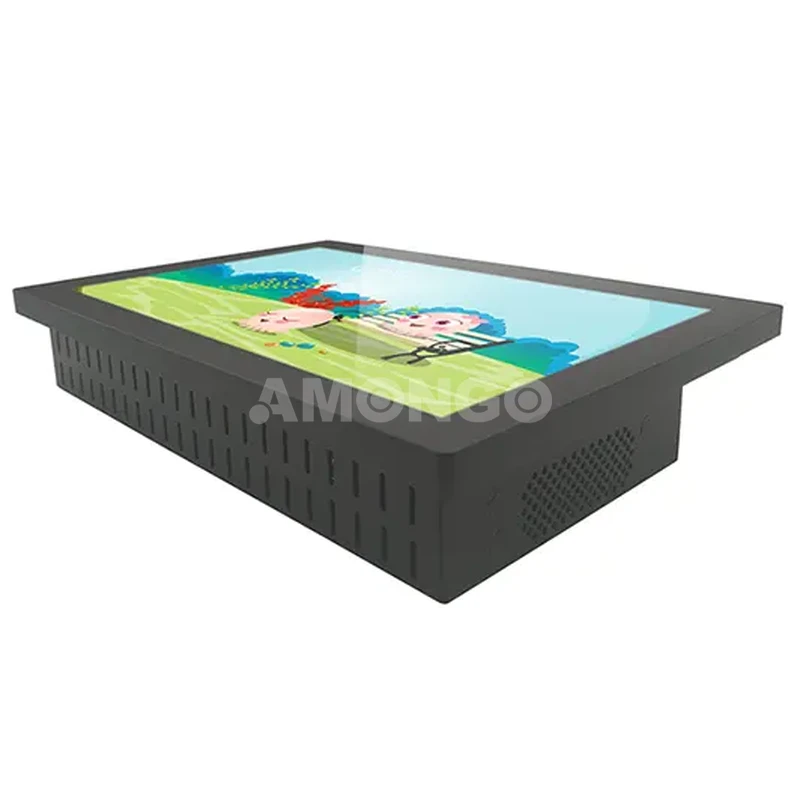

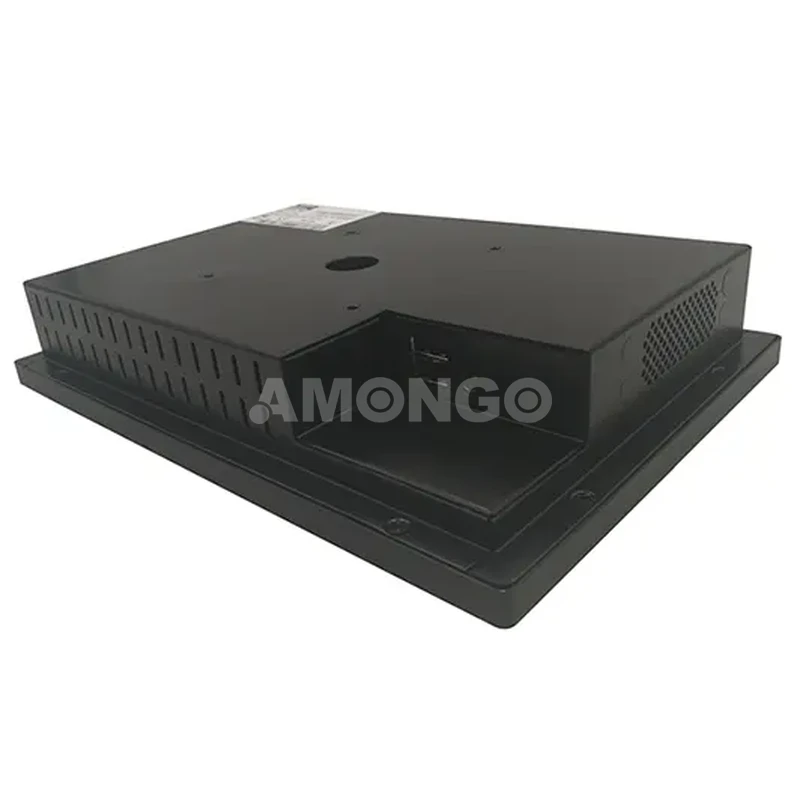

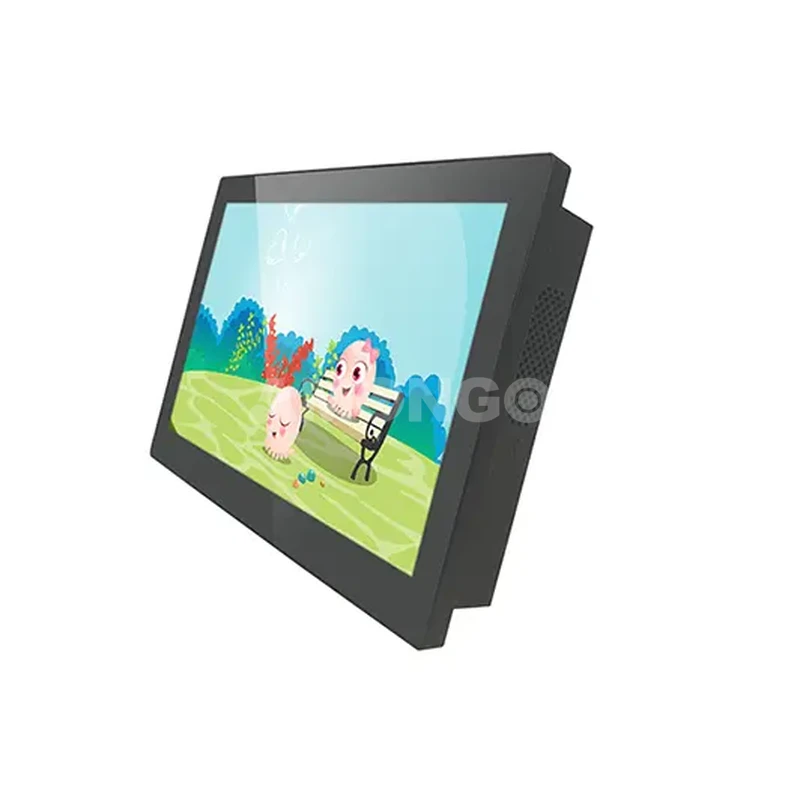

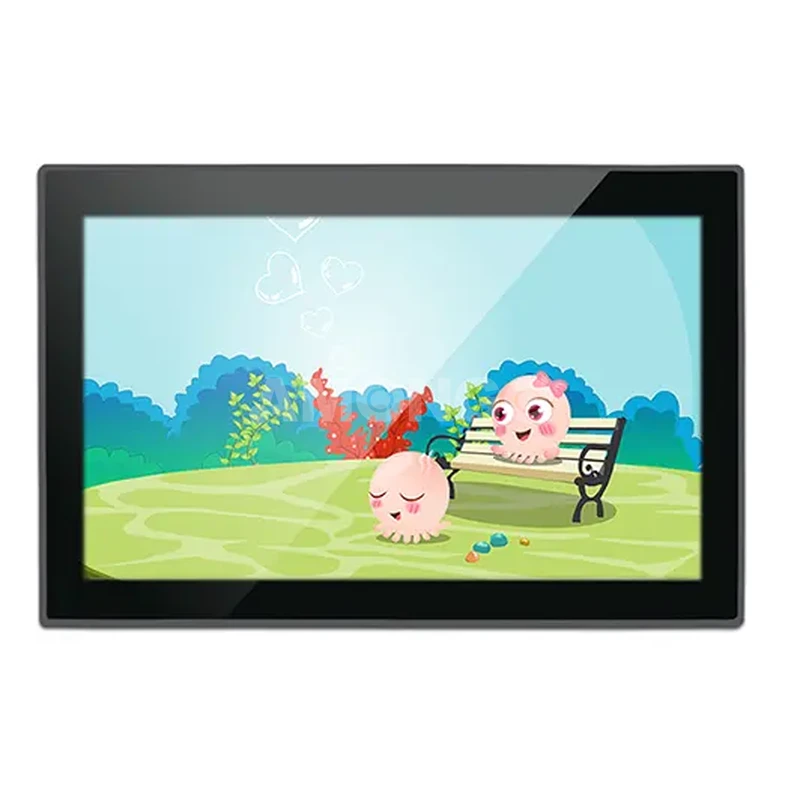

The 10.1 inch zero bezel panel computer AMG-10PPC01T3 from Amongo is equipped with the latest generation touchscreen technology with following features:
High resolution TFT LCD panel from famous brand, with good image effect and wide view angles;
Fan-less cooling system and low power consumption with Intel processor;
Multiple touch P-CAP touchscreen, tempered glass can be added;
Edge-to-edge design true flat surface with IP65, easy for maintenance;
Robust casing and structure design to withstand the most demanding environment, anti-vibration, anti-shock;
Diversified installation methods: vesa mount, panel mount etc.
Supporting various operation system of Windows, Android, Linux;
Meet with test for reliability and sustainability;
Passed necessary certificates like CE, RoHS, and ISO system etc.
Model Name | AMG-10PPC01T3 |
CPU | Intel ® Celeron ® CPU N2930 @ 1.83GHz |
RAM | 4GB (Max 8GB optional) |
SSD | 32GB |
power supply | 1x power supply port |
USB ports | 1x USB(2xUSB2.0,3xUSB 3.0 optional) |
WiFi | Support |
Screen Size | 10.1" |
Active Area(mm) | 216.96(H)x135.6(V) |
Pixel Pitch(mm) | 0.1695(H)x0.1695(V) |
Display Resolution | 1280x800 |
Brightness(cd/㎡) | 350nits |
Contrast Ratio | 800:1 |
Viewing Angles | 170(H);170(V) |
Response Time(Tr+Tf) | 25ms |
Signal Connector | VGA/USB |
Power Consumption | DC 12V |
Touch Controller | USB |
Touch Screen | PCAP Touch(10 points) |
Dimension(VxHxT)mm | 251.4x174.4x44 |
Operating Temperature | -20~70℃(non-condensation) |
Storage Temperature | -30~80℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
