Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
Wide range of touchscreen technologies including PCAP, Resistive, IR etc
High-end mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Customization service available

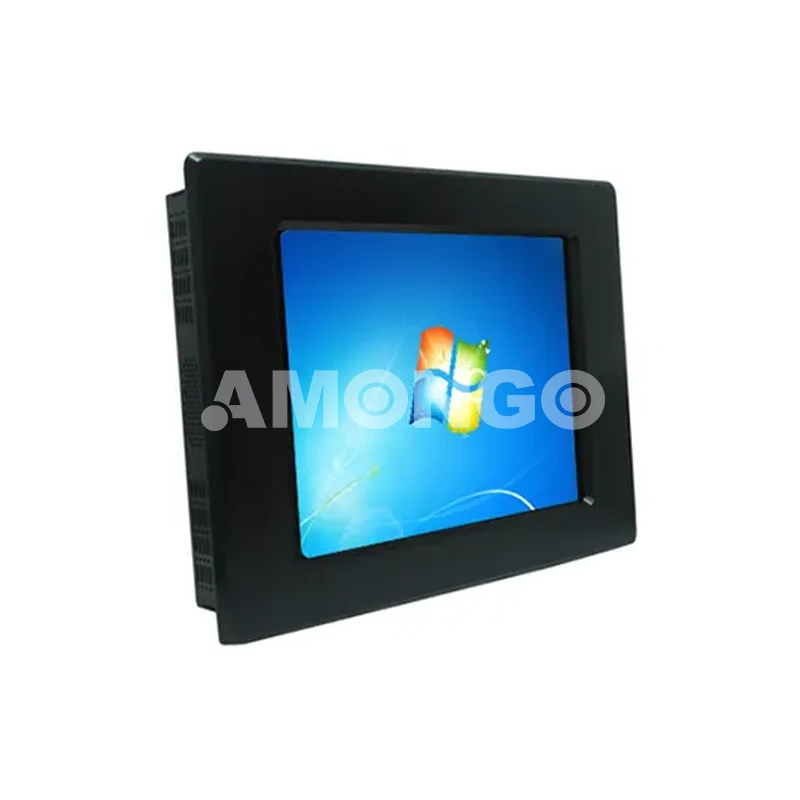

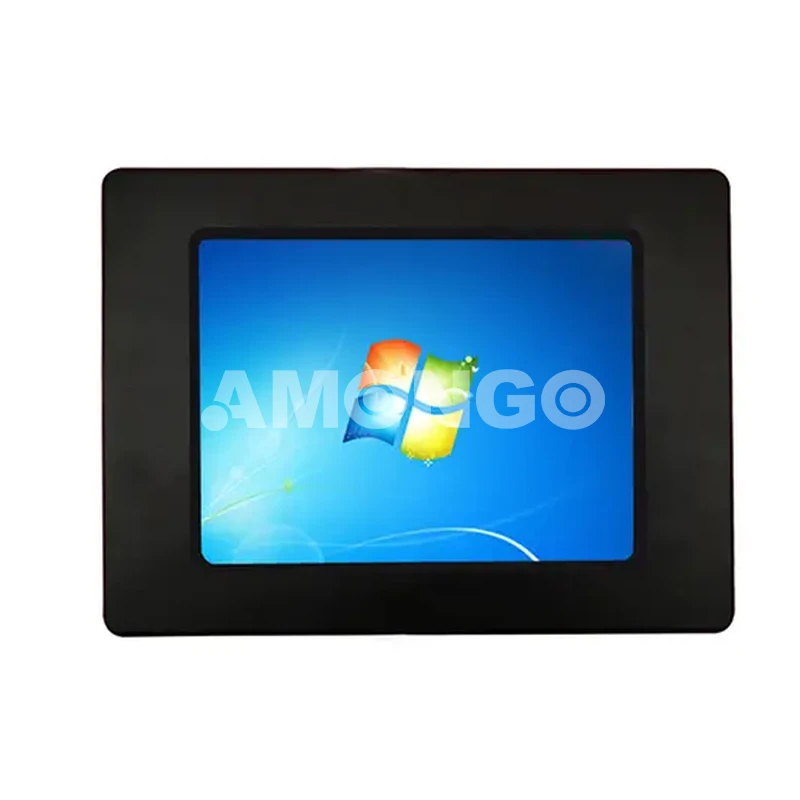

Model Name | AMG-10IPPC02T2 |
Screen Size | 10.4" |
Active Display Area (mm) | 211.2 (H) x158.4 (V) |
Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800x600 |
Contrast Ratio | 700:1 |
Display Color | 16.2M/262K |
Brightness (CD/㎡) | 400 |
Backlight | LED |
Viewing Angles (CR =10) | 160(H)x140 (V) |
Response Time(Typ.Tr+Tf) | 30ms |

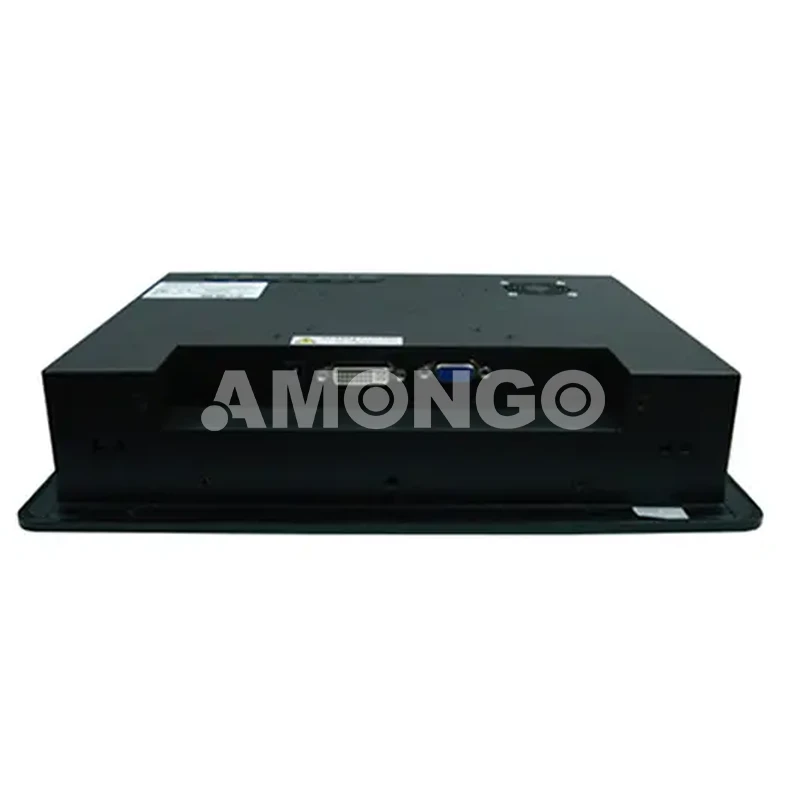

Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 306.6x230.1x57 |
Operating Temperature | -30～80℃ |
Storage Temperature | -30～80℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen | Resistive |
