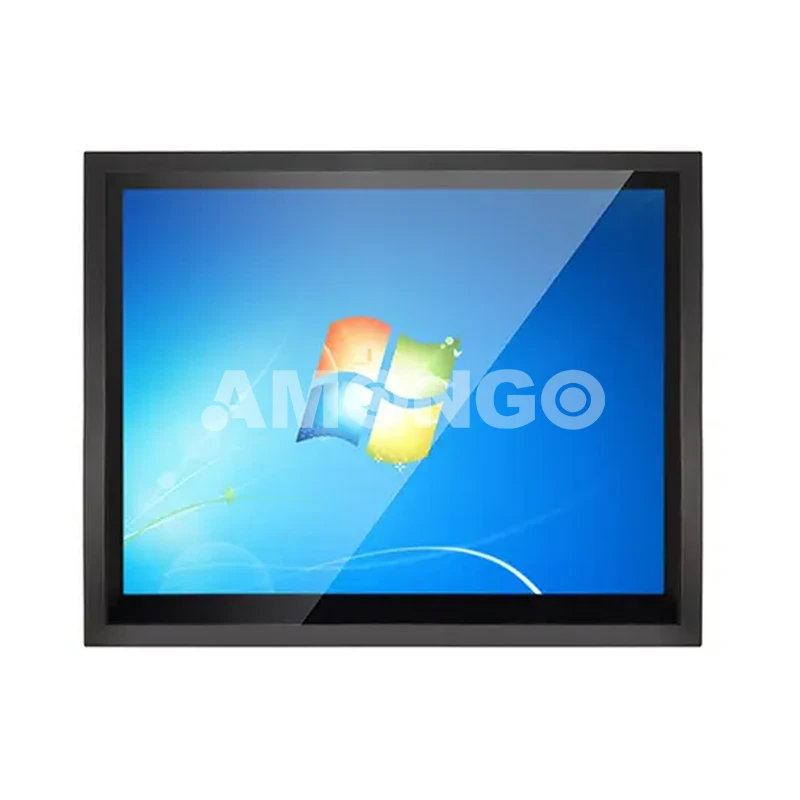

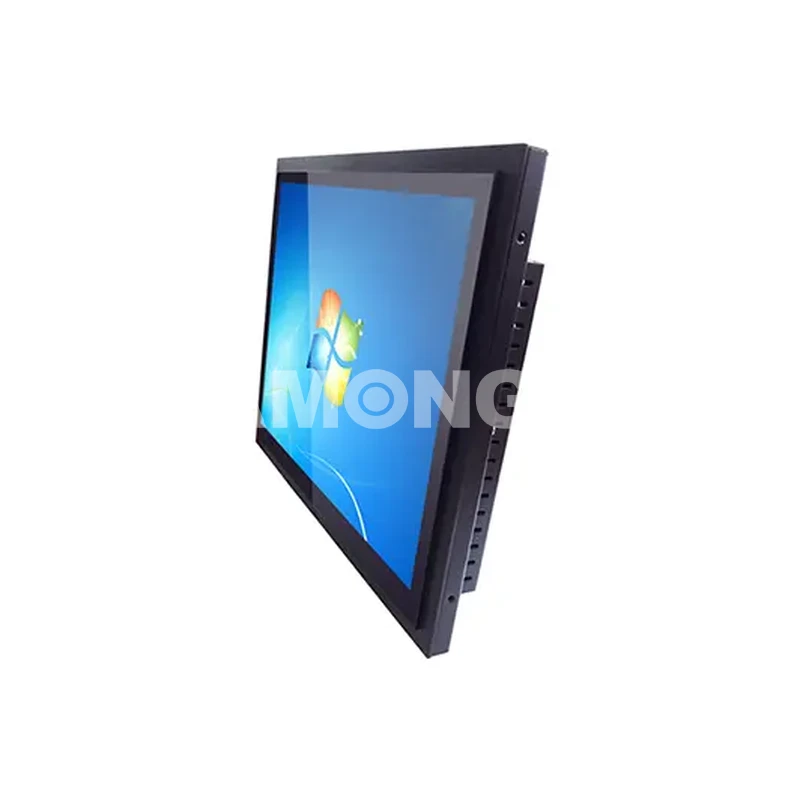

Model Name | AMG-10IPYZ02T1 |
Screen Size | 10.4" |
Active Display Area (mm) | 211.2(H)x158.4(V) |
Pixel Pitch (mm) | 0.2055(H)x0.2055(V) |
Display Mode | Normally White |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 900:1 |
Display Color | 262K/16.7M |
Brightness (CD/㎡) | 350nits |
Backlight | LED |
Viewing Angles (CR =10) | 150(H);150(V) |
Response Time(Typ.Tr+Tf) | 16ms |

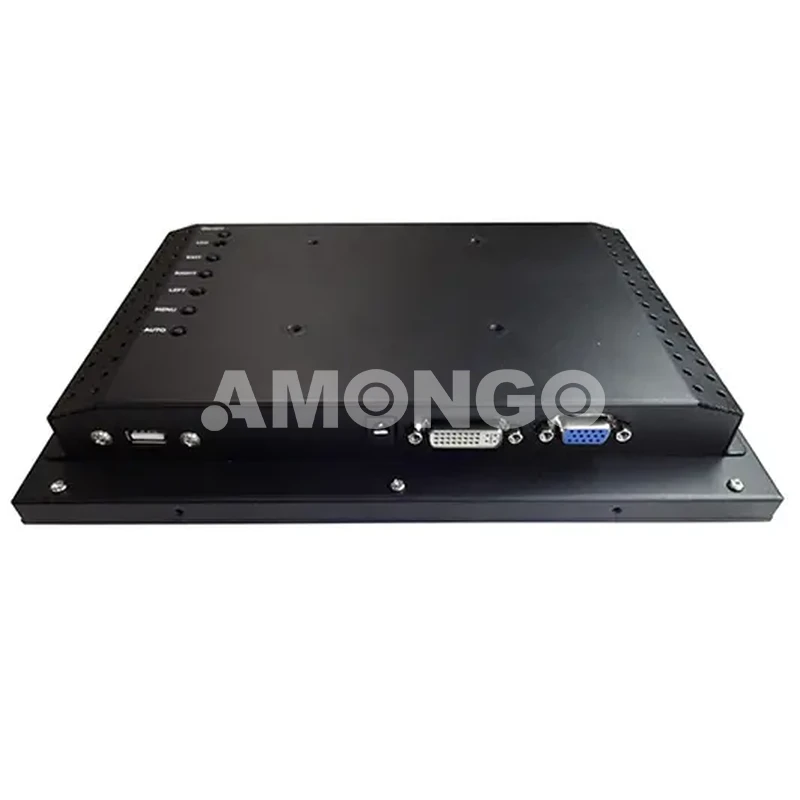

Signal Connector | VGA/DVI-D/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 248.8X199.6X36.9 |
Operating Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
Relative Humidity | 5(%RH)~90(%RH) |
