Model Name | AMG-11IPAM01T1 |
Screen Size | 11.6" |
Active Display Area(mm) | 256.32(H)x144.18(V) |
Pixel Pitch(mm) | 0.1335(H)x0.1335(V) |
Display Mode | Normally Black |
Display Resolution(pixel) | 1920x1080 |
Contrast Ratio | 16.7M |
Display Color | 900:1 |
Brightness | 600nits |
Backlight | LED |
Viewing Angles(CR=10) | 176(H);176(V) |
Response Time(Typ.Tr+Tf) | 25ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optinal |

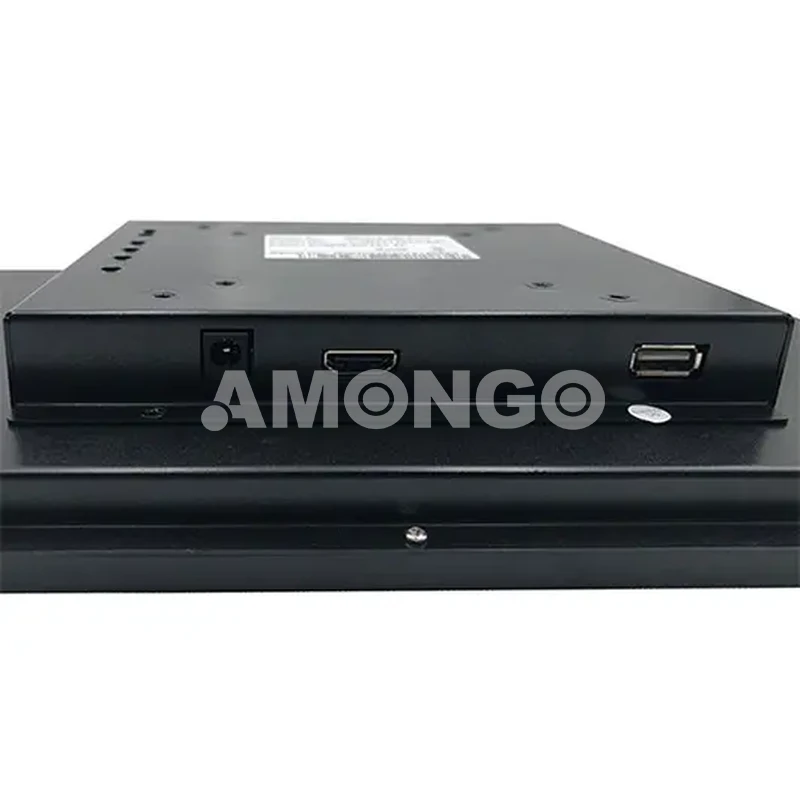

Signal Connector | HDMI |
Power Input | DC 12V |
Touch Controller | USB |
Dimension(VxHxT)mm | 289.3x187x42.5 |
Operating Temperature | -20~70℃(non-condensation) |
Storage Temperature | -30~80℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
