Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
Wide range of touchscreen technologies including PCAP, Resistive, IR etc
High-end mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Customization service available

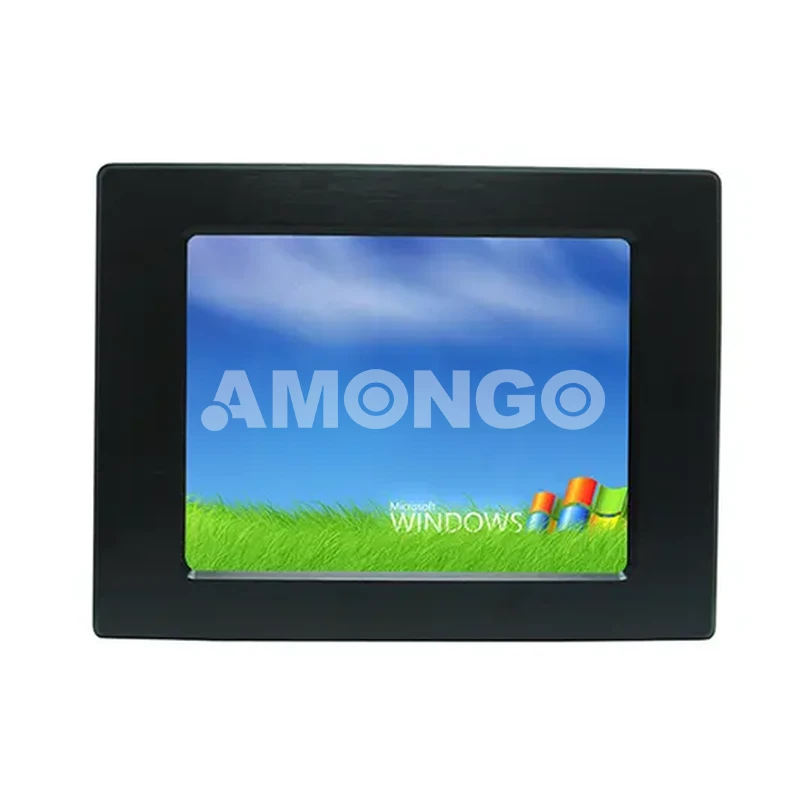

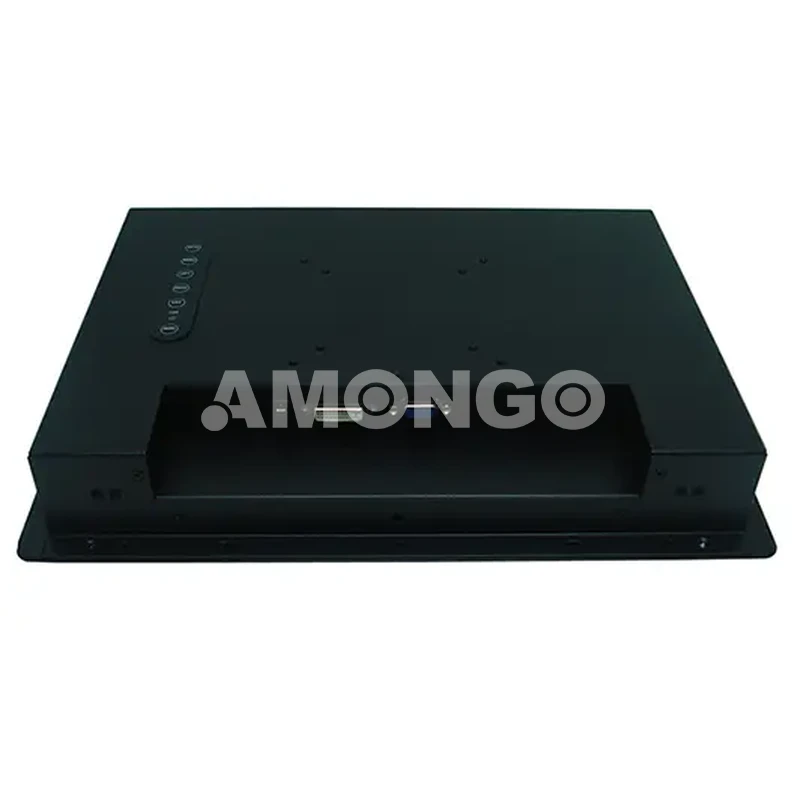

Model Name | AMG-12IPPC01T1 |
Screen Size | 12.1" |
Active Display Area (mm) | 246.0 (H) x 184.5 (V) |
Pixel Pitch (mm) | 0.3075(H) x 0.3075(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800x600 |
Contrast Ratio | 600:1 |
Display Color | 16.2M/262K colors |
Brightness (CD/㎡) | 400 |
Backlight | LED |
Viewing Angles (CR =10) | 140 (H); 110 (V) |
Response Time(Typ.Tr+Tf) | 35ms |
Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 351x265x56 |
Operating Temperature | -30～80℃ |
Storage Temperature | -30～80℃ |
Relative Humidity | 5(%RH)～90(%RH) |
