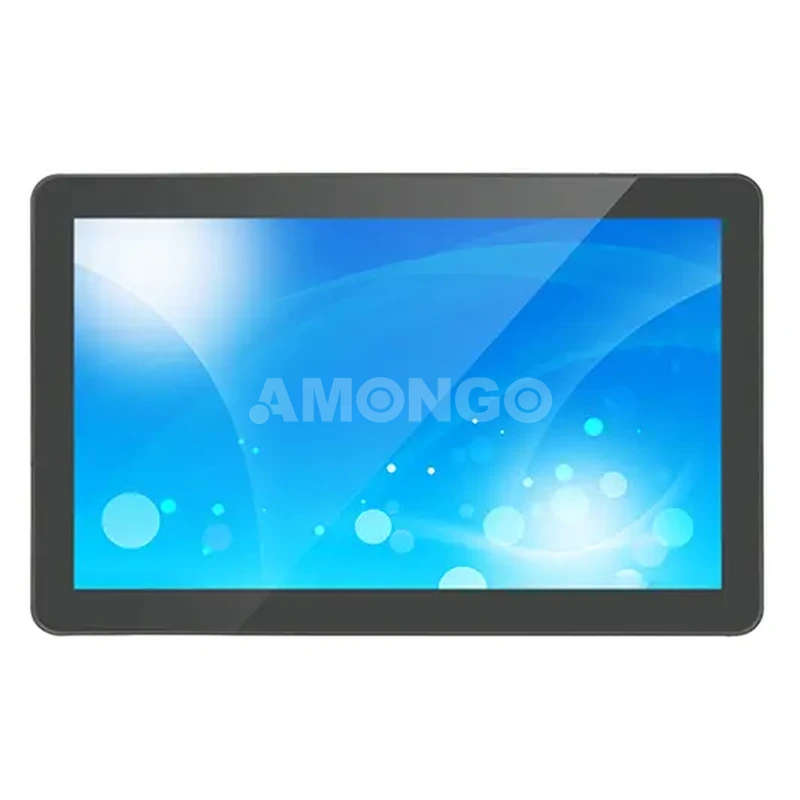

The 13.3 inch industrial panel pc AMG-13PPC02T1 from Amongo is made to meet with customers’ requirement with below benefits:
High resolution TFT LCD panel from famous brand, with good image effect and wide view angles;
Fan-less cooling system and low power consumption with Intel processor;
Zero bezel projective capacitive touchscreen, rapid touch response;
Edge-to-edge design true flat surface design, bezel free, slim appearance;
Easy to clean and maintain, front IP 65 waterproof, dust proof;
Option of tempered glass for vandal proof function;
Robust casing and structure design to withstand the most harsh environment, anti-vibration, anti-shock;
Various mounting options: VESA mount, embedded mount etc.
Supporting various operation system of Windows, Android, Linux etc.;
Meet with reliability test for industrial applications;
Passed necessary certificates like CE, RoHS, and ISO system etc.
Model Name | AMG-13PPC02T1 |
CPU | Intel ® Bay Trail J1900 Quad Core 2.0GHz |
RAM | DDR3L 1333 8GB 1.35V |
SSD | 64GB(16/32GB optional) |
HDD | 120GB |

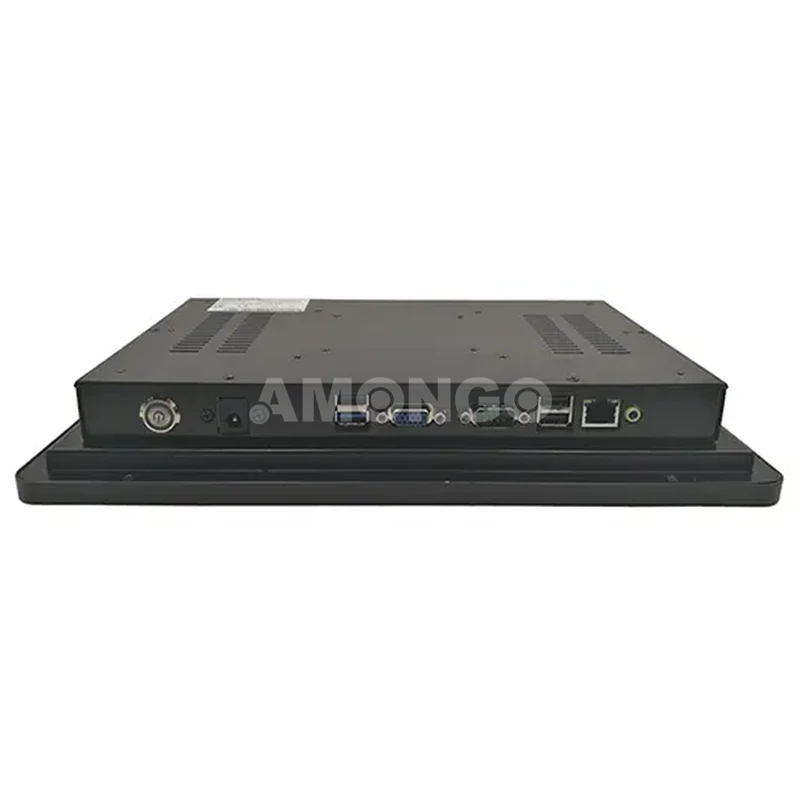

VGA port | 1 x VGA port |
COM port | 1 x COM port |
USB ports | 3xUSB 2.0 ; 1 x USB 3.0 |
LAN | 1x10/100/1000Base-T Gigabit Ethernet |
Auido | Line out |
Screen Size | 13.3" |
Active Area(mm) | 293.76(H)x165.24(V) |
Pixel Pitch(mm) | 0.153(H)x0.153(V) |
Display Resolution | 1920x1080 |
Display Color | 262K |
Brightness(cd/㎡) | 220nits |
Contrast Ratio | 500:1 |
Viewing Angles | 160(H);160(V) |
Response Time(Tr+Tf) | 30ms |
Touch Screen | PCAP Touch(10 points) |
Tempered glass | Optional |
Dimension(VxHxT)mm | 330.4x166.6x47 |
Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
