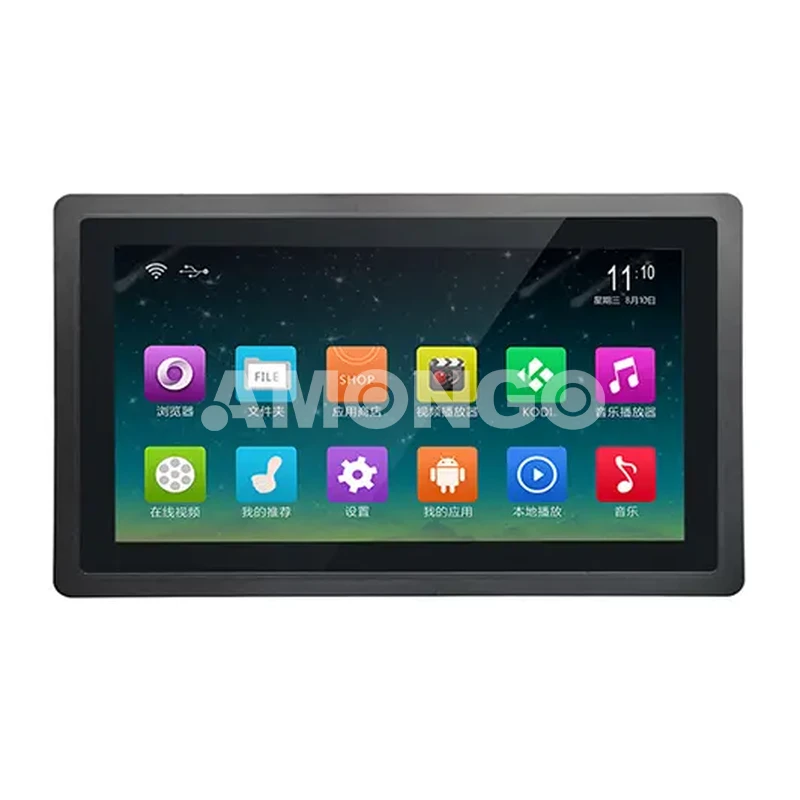

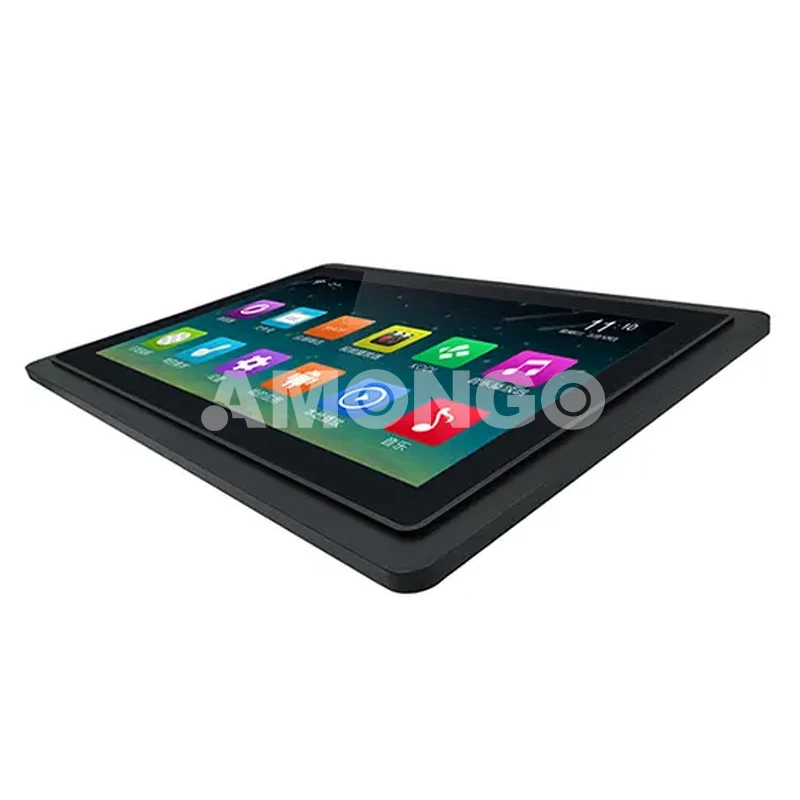

The Android based all in one PC AMG-15PPC04T2 is a 15 inch industrial panel computer made by Amongo and it has been widely installed in parcel lockers and battery exchanging stations with the following advantages:
Famous brand LCD panels adopted to ensure a perfect and clear image color and wide view angels with LED back light for energy-saving;
Popular Android operation system for end users’ final development;
Supporting Ethernet / Wi-Fi / Bluetooth / GPS and other functions;
Flat surface design with PCAP touch screen to support front IP65 waterproof, dust proof and vandal proof with tempered glass;
Passed all the stability and reliability tests to ensure long time operation;
Customization could be offered to meet projects related with AI and IoT
System | Model Name | AMG-15PPC04T2 |
CPU | ARM Cortex-A53 T820 Eight Core 64-bit 2.0GHz CPU | |
RAM | 2GB(4GB optional) | |
EMMC | 8GB(16GB optional) | |
OS | Android 6.0 | |
HDMI port | 1 x HDMI | |
USB ports | 4 x USB; 1 x USB OTG | |
LAN | 4G/3G, Ethernet, WiFi, GPS support | |
SD Card | Support | |
LED ports | 2 x LED | |
Speaker port | 1 x Speaker | |
Tel port | 1 x Telephone | |
LCD | Screen Size | 15.6" |
Active Area(mm) | 344.16(H)x193.59(V) | |
Pixel Pitch(mm) | 0.17925(H)x0.17925(V) | |
Display Resolution | 1920x1080 | |
Display Color | Normally Black | |
Brightness(cd/㎡) | 300nits | |
Contrast Ratio | 800:1 | |
Viewing Angles | 170(H);170(V) | |
Response Time(Tr+Tf) | 30ms | |
Backlight | LED | |
Optional | Tempered Glass | Optional |
Touch Screen | PCAP Touch(10 points) | |
Mechanical | Dimension(VxHxT)mm | 420x270x51.36 |
Environmental | Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) | |
Relative Humidity | 5~90(%RH) |
