AMG-15OPHA07N1
1024x768 pixels
Brightness:250 nits
No Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc.
High-end mechanical design to meet tough environmental conditions and requirements
Customization solution available
Model Name | AMG-15OPHA07N1 |
Screen Size | 15" |
Active Display Area (mm) | 304.128 (H) x 228.096 (V) |
Pixel Pitch (mm) | 0.297 (H) x 0.297(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 400:1 |
Display Color | 262K colors |
Brightness (CD/㎡) | 250 |
Backlight | LED |
Viewing Angles (CR =10) | 120 (H); 100 (V) |
Response Time(Typ.Tr+Tf) | 16ms |

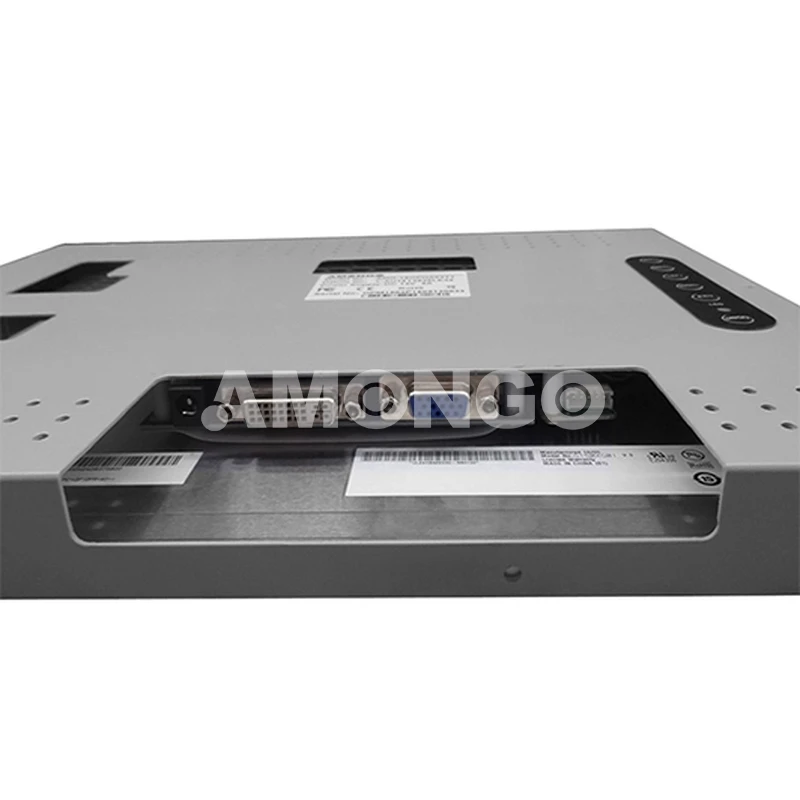

Signal Connector | VGA/DVI |
Power Consumption | DC 12V_4A |
Dimension(VxHxT) | 329x256x29 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen(optional) | Resistive / IR / SAW / Capacitive |
