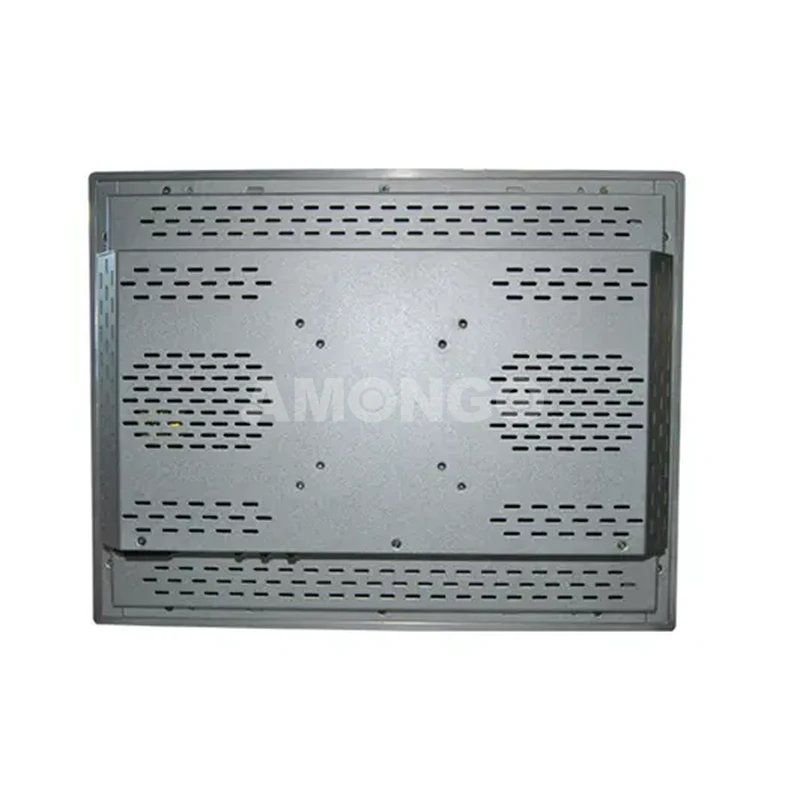

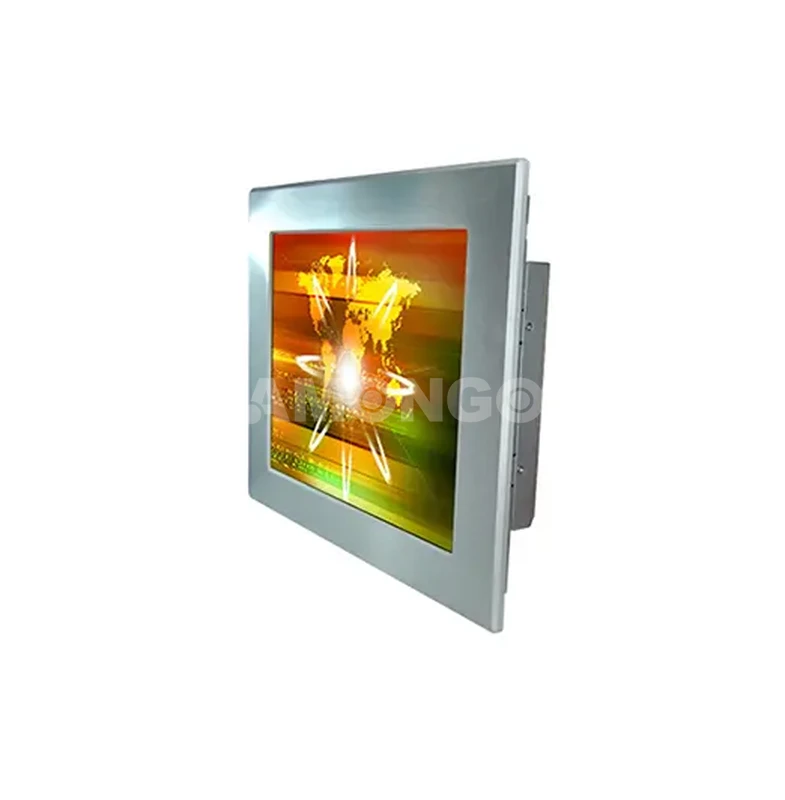

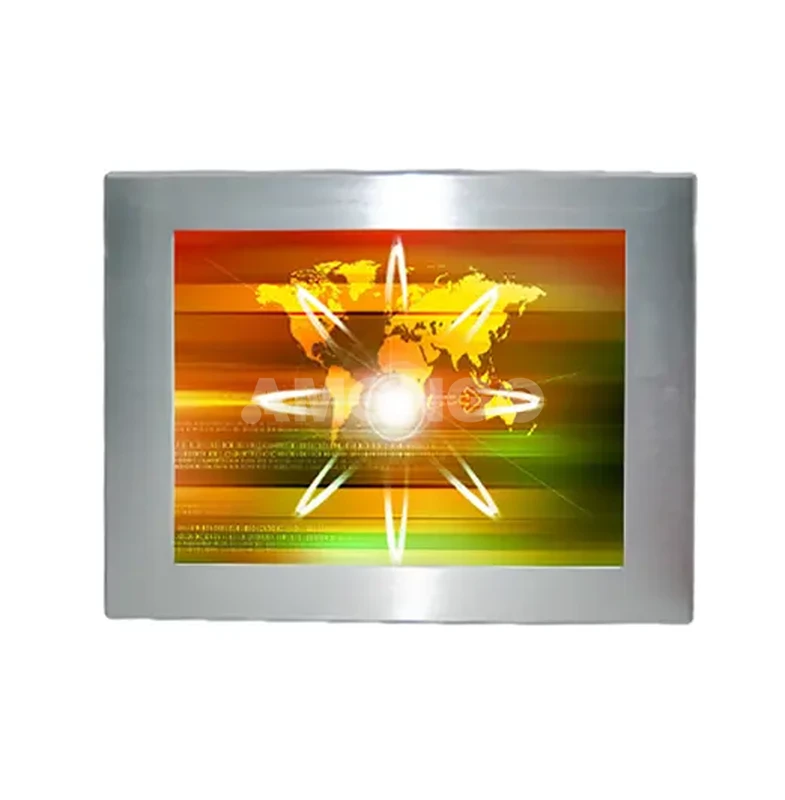

15 Inch Panel Mount Industrial Panel PC

Model Name

AMG-15PPC01NC

CPU

Intel ATOM N2600 Dual core 1.6GHz

Memory

RAM 2GB.DDR3 SO-DIMM

HDD

HDD 320 G 5400 RPM.2.5 SATA

HDMI port

1xHDMI port

COM ports

Default x 4 COM

USB 2.0 ports

Default x 3 USB 2.0

Ethernet ports

1x10/100/1000base-T Gigabit Ethernet

Audio

Line-out,mic-in

Display Size(Diagonal)

15"

Active Display Area(mm)

304.128(H)x228.096(V)

Max Resolution

1024x768

Support Color

16.2M

Luminance(CD/M )

250

Contrast Ratio

700:1

Pixel Pitch(mm)

0.297(H)x0.297(V)

Viewing Angle

160(H);140(V)

Response Time(Typ.Tr+Tf)

8ms

Backlight

LED

Type

NA

Use connector

NA

Input Voltage

AC 90-264V 4A 47～63Hz

Output Rating

60W(max)

Output Voltage

DC12V@2.5A;

Dimension(VxHxT)

410.4x317.4x83

Operating Temperature

-30～85℃

Storage Temperature

-30～85℃

Relative Humidity

5[%RH]～90[%RH]
