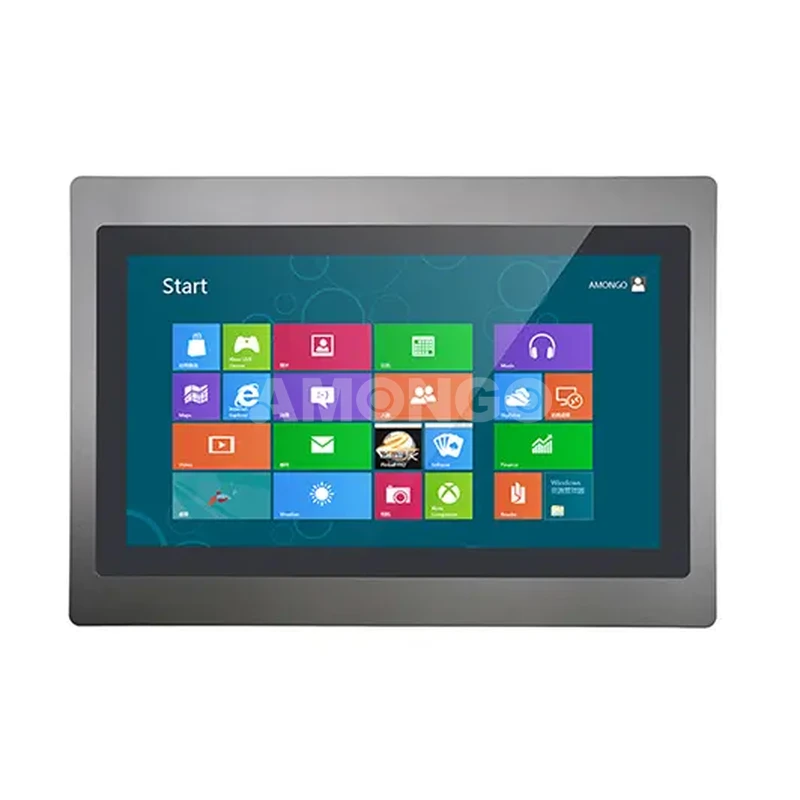

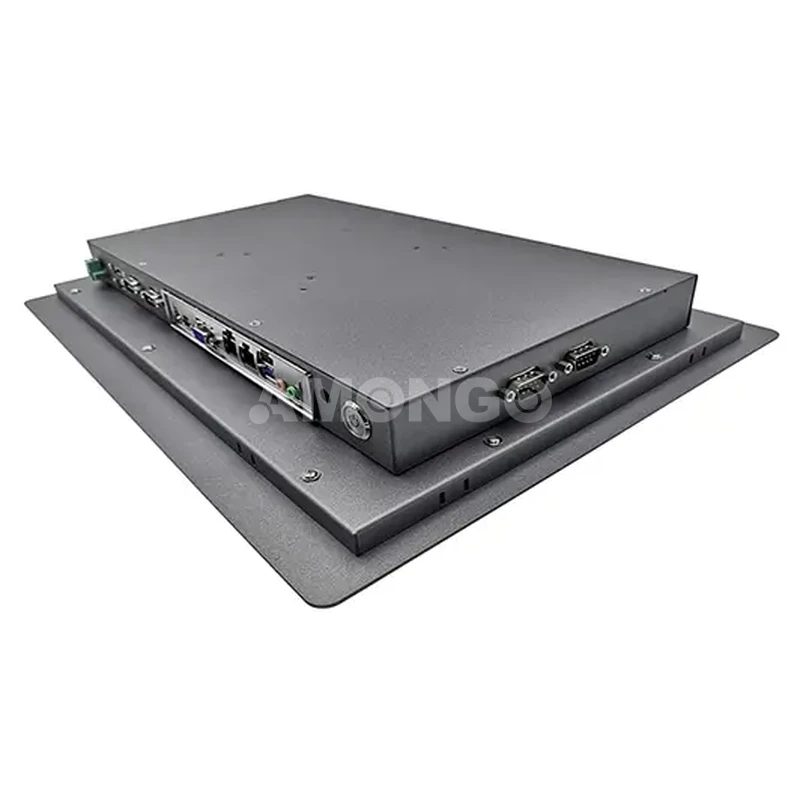

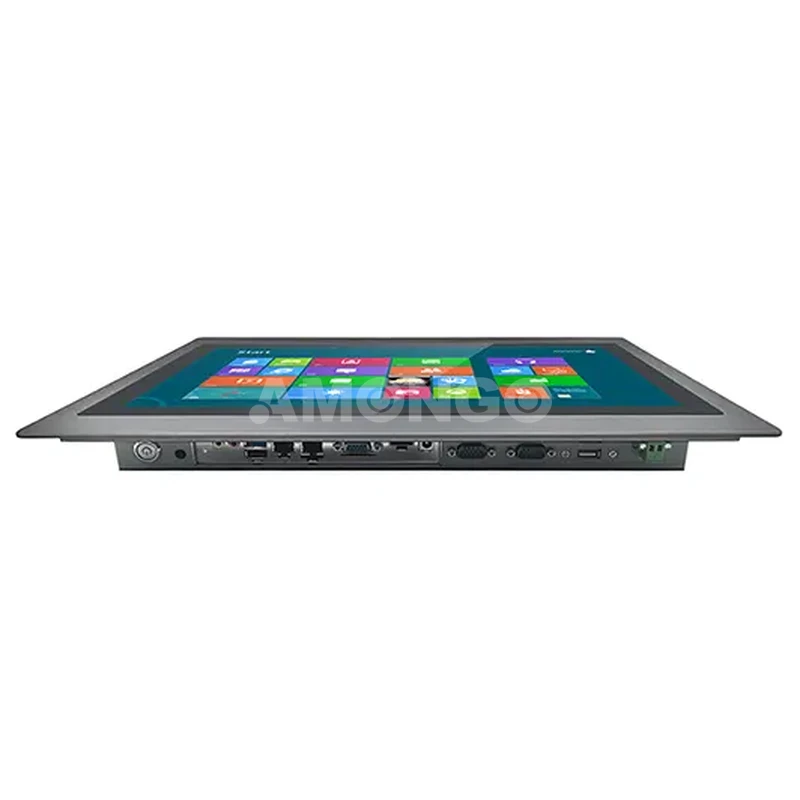

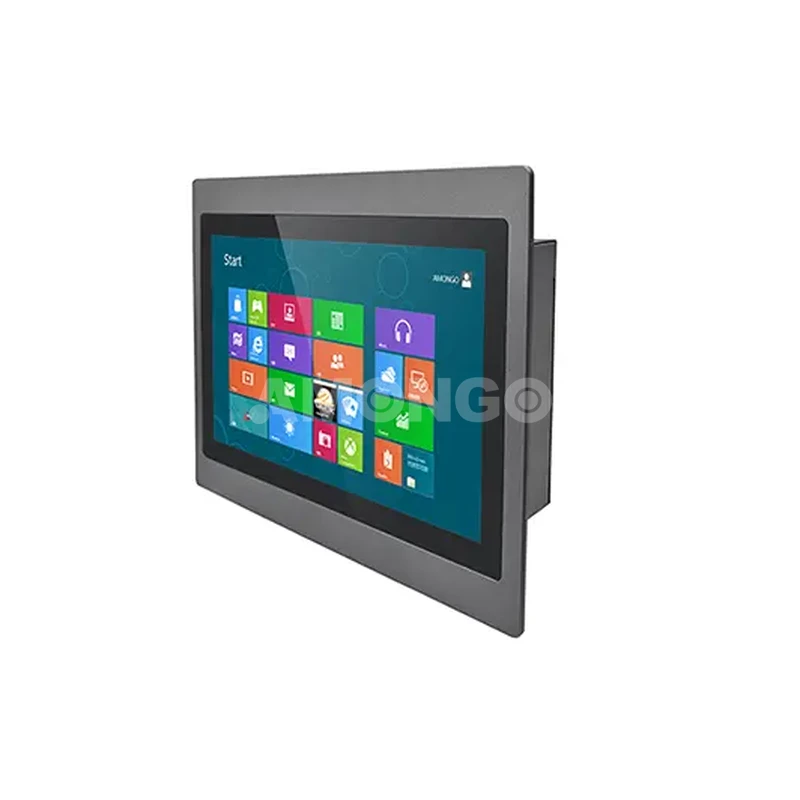

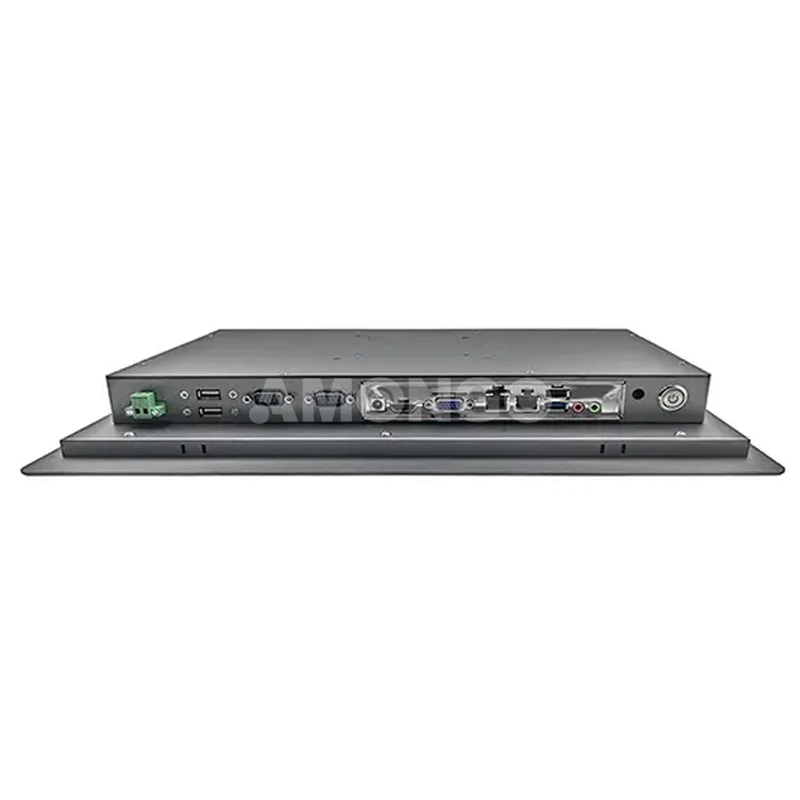

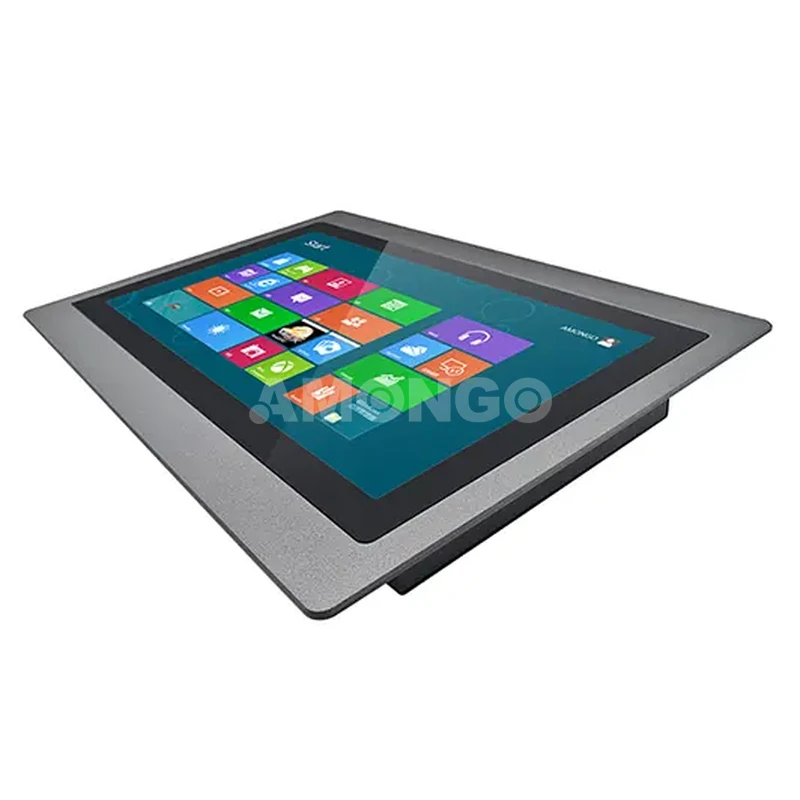

Amongo's ultra-slim designed 15.6 inch industrial touch screen panel computer is a low power-consumption fanless computer with the following benefits:
Original famous brand LCD panels with perfect image quality and wide, LED backlight with long life span, energy-saving;
Powered by reliable Intel J1900 processor and other industrial-grade components for industrial applications;
Modularized compact design, easy for installation and replacement;
10 points capacitive touch screen, IP65 front AL bezel, flat surface;
Stable quality, high reliability and long lifetime even in harsh conditions;
Ultimate solution for industrial embedded computing with customization
System | Model Name | AMG-15PPC05T1 |
CPU | Intel ® Bay Trail J1900 Quad Core 2.0GHz | |
RAM | 2GB(4GB optional) | |
SSD | 120GB(optional) | |
VGA port | 1 x VGA port | |
HDMI port | 1 x HDMI | |
COM ports | 4 x COM port | |
USB ports | 3 x USB 2.0 ; 1 x USB 3.0 | |
LAN | 2 x 10/100/1000Base-T Gigabit Ethernet | |
Auido | Mic-in,Line-out | |
Phoenix Terminal | 1 x Phoenix Terminal | |
LCD | Screen Size | 15.6" |
Active Area(mm) | 344.16(H)x193.59(V) | |
Pixel Pitch(mm) | 0.17925(H)x0.17925(V) | |
Display Resolution | 1920x1080 | |
Brightness | 250nits | |
Contrast Ratio | 800:1 | |
Viewing Angles | 170(H);170(V) | |
Response Time(Tr+Tf) | 30ms | |
Backlight | LED | |
Optional | Touch Screen | PCAP Touch(10 points) |
Tempered Glass | Optional | |
Mechanical | Dimension(VxHxT)mm | 420x302x48 |
Environmental | Operating Temperature | 0~500℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) | |
Relative Humidity | 5~90(%RH) |
