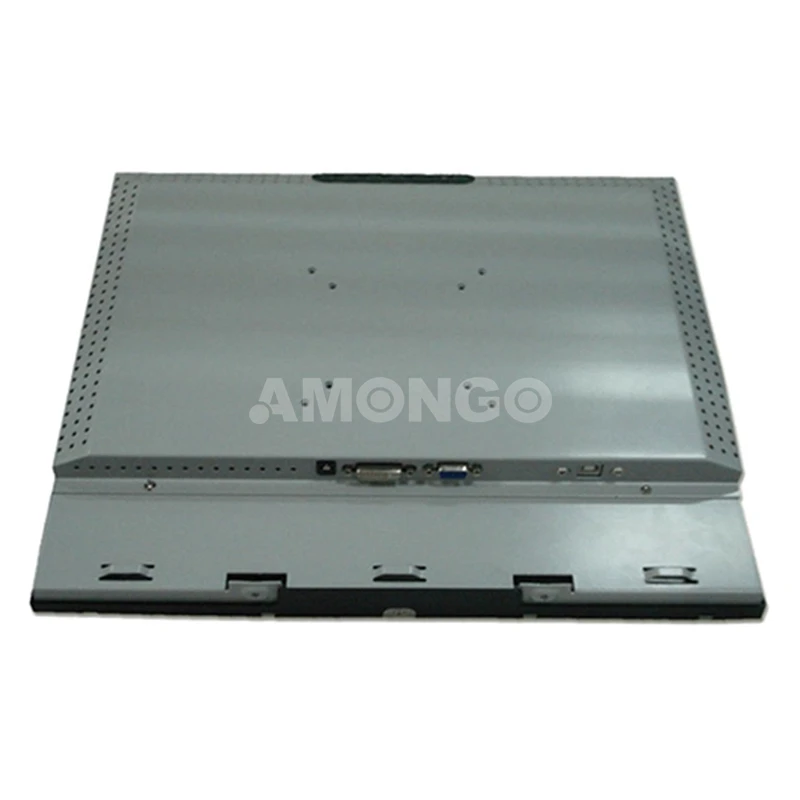

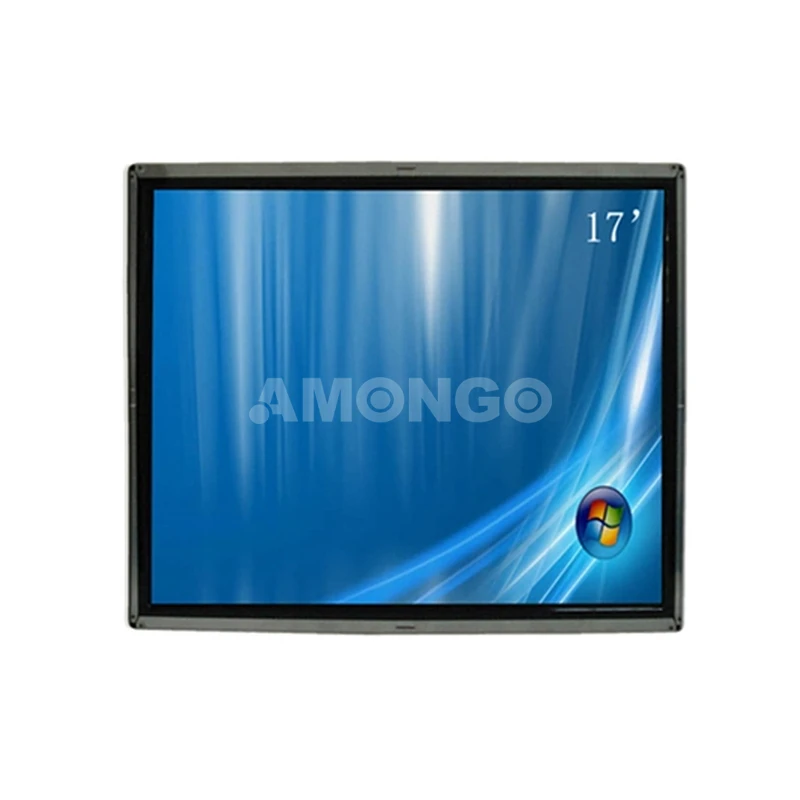

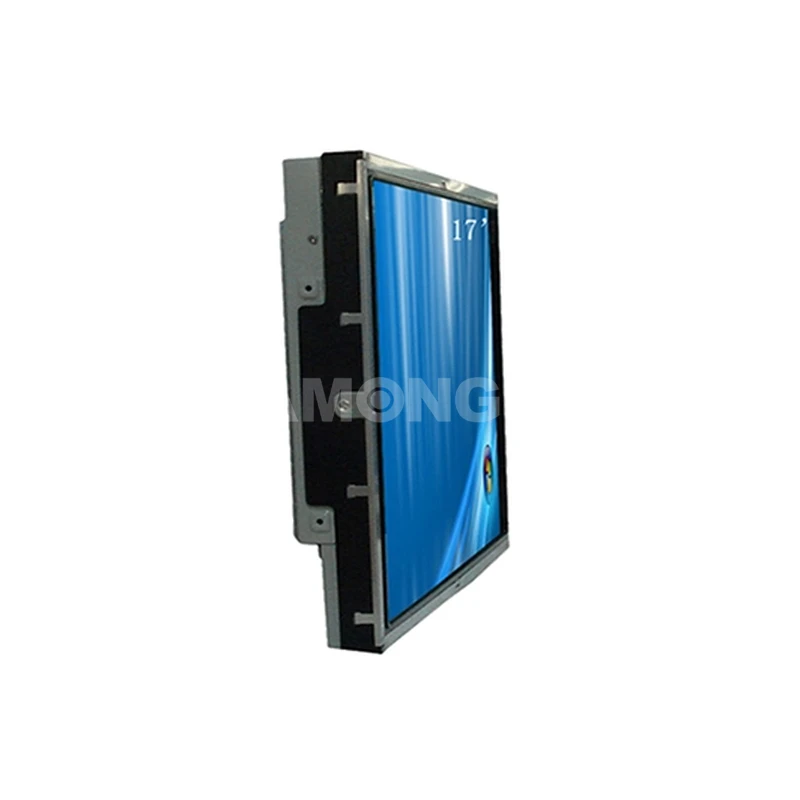

AMG-17OPHA01T1
1280x1024 pixels
Brightness:250 nits
Resistive Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements
Rear mounted or VESA mounted design for easy installation for kiosks application
Customization service available
Model Name | AMG-17OPHA01T1 |
Screen Size | 17” |
Active Display Area (mm) | 337.92 (H) x 270.33 (V) |
Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1280x1024 |
Contrast Ratio | 1000:1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 250 |
Backlight | LED |
Viewing Angles (CR =10) | 170 (H); 160 (V) |
Response Time(Typ.Tr+Tf) | 8ms |
Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 368.13x306.13x54.26 |
Operating Temperature | 0～50℃ |
Storage Temperature | -10～70℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen | Resistive |
