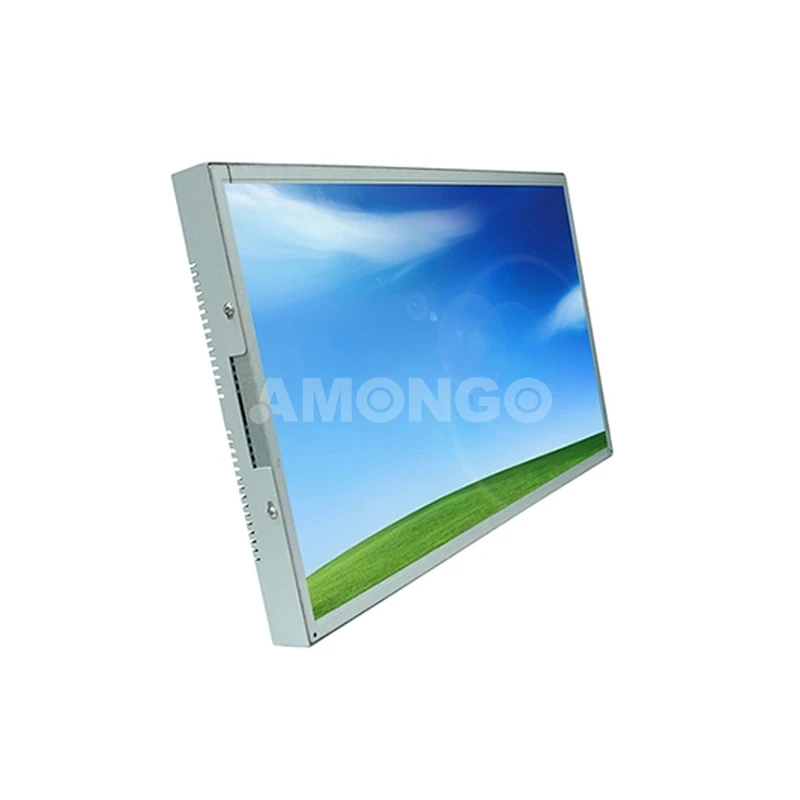

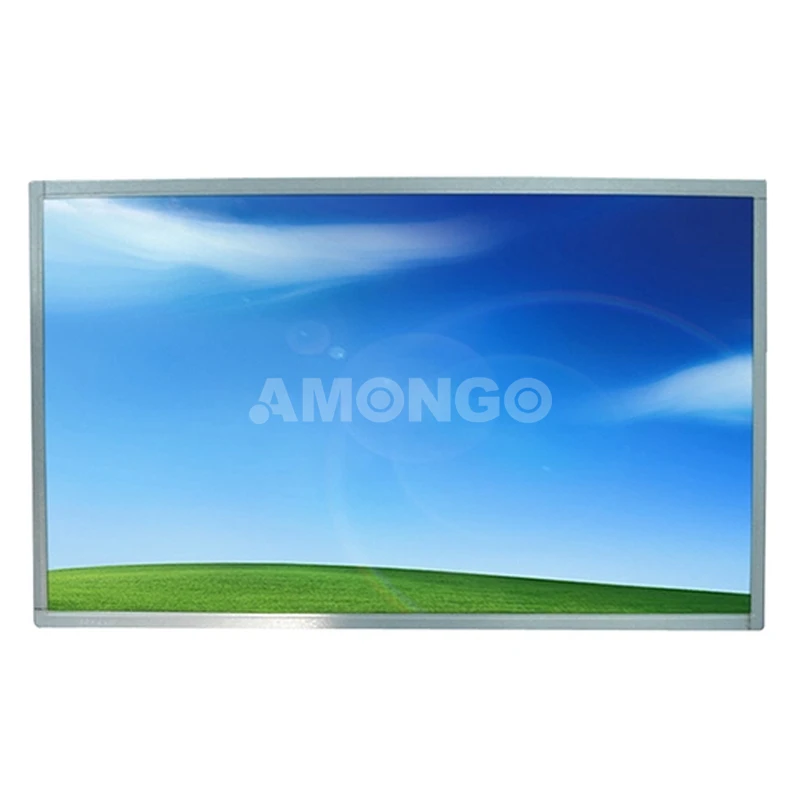

AMG-18OPHA01N1
1366x768 pixels
Brightness:250 nits
No Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Model Name | AMG-18OPHA01N1 |
Screen Size | 18.5" |
Active Display Area (mm) | 409.8(H) x 230.4(V) |
Pixel Pitch (mm) | 0.3(H)x0.3(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1366x768 |
Contrast Ratio | 1000:1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 250 |
Backlight | LED |
Viewing Angles (CR =10) | 170(H)X160(V) |
Response Time(Typ.Tr+Tf) | 5ms |

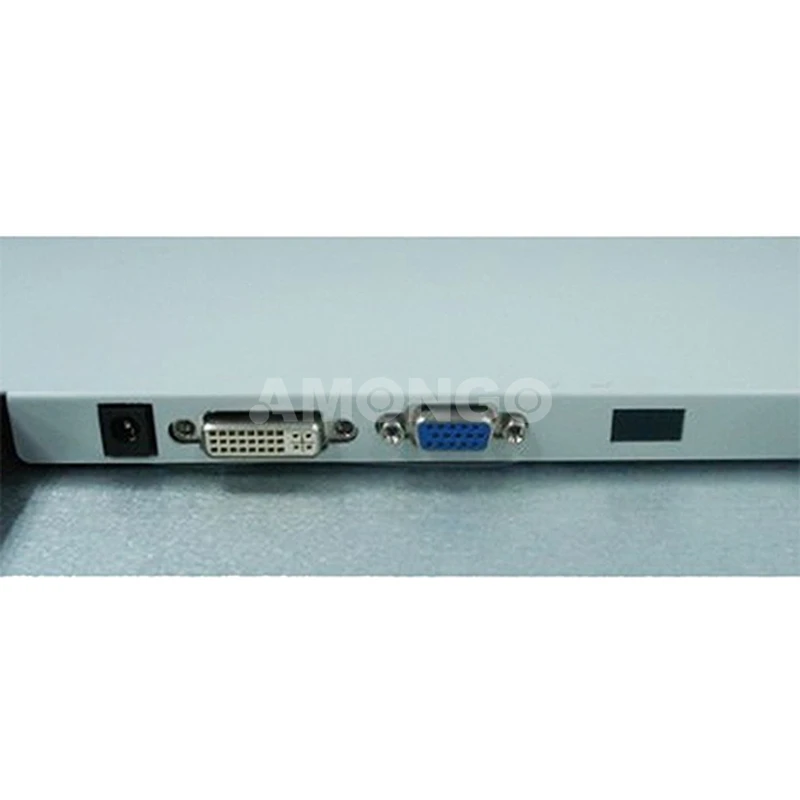

Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 433X257.2X35 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen | Optional |
