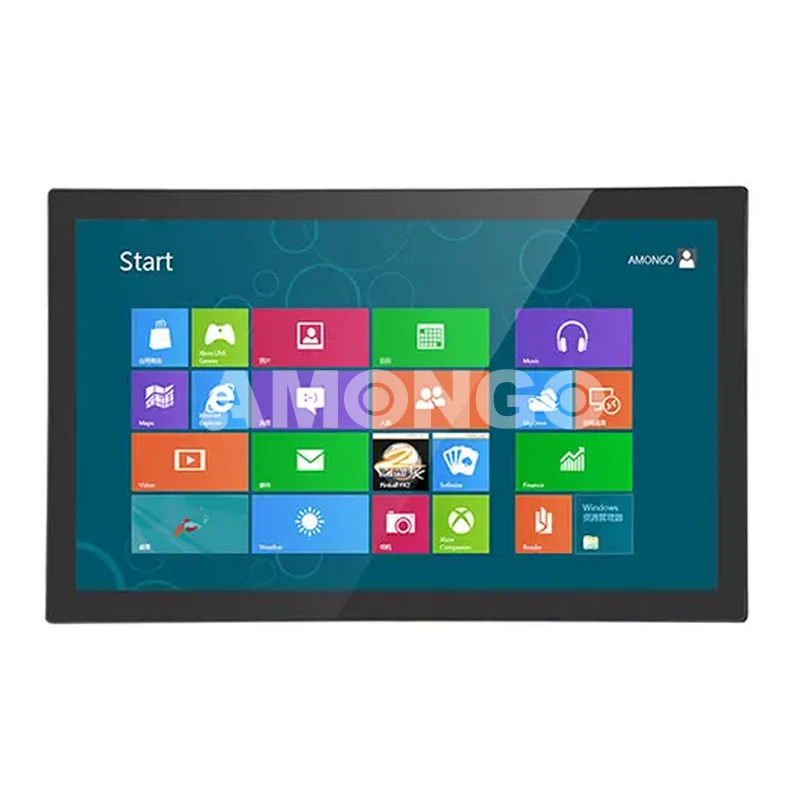

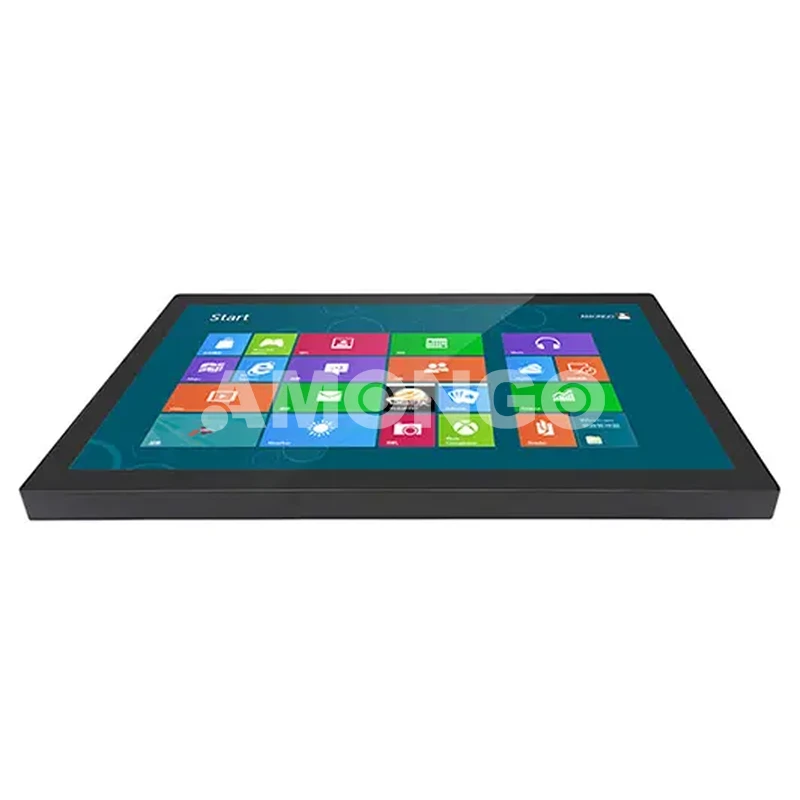

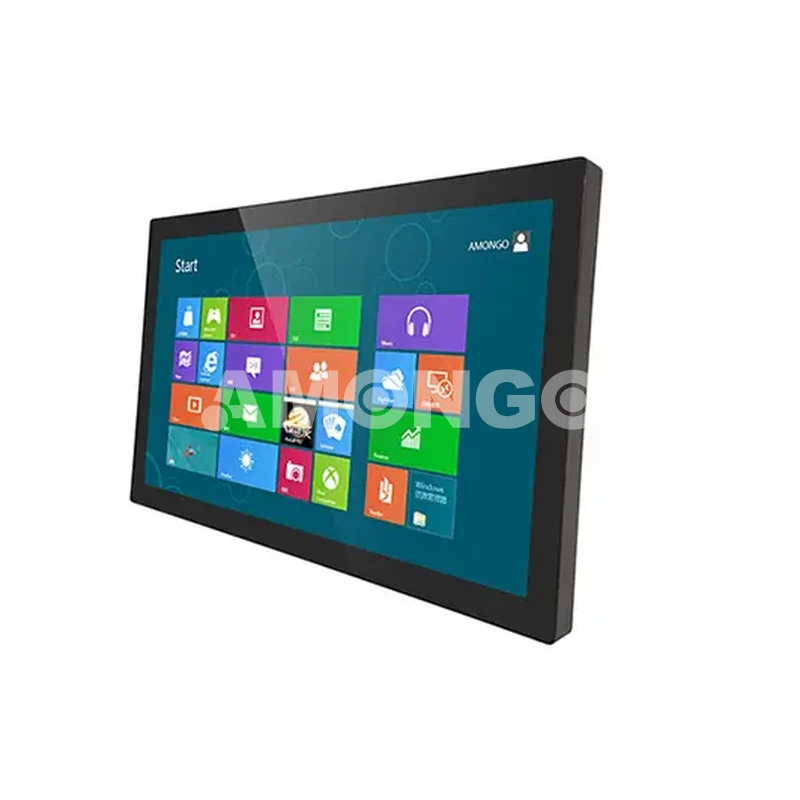

Model Name | AMG-18IPAM01T1 |
Screen Size | 18.5" |
Active Display Area(mm) | 408.96(H)x230.04(V) |
Pixel Pitch(mm) | 0.213(H)x0.213(V) |
Display Mode | Normally black |
Display Resolution(pixel) | 1920x1080 |
Contrast Ratio | 1000:1 |
Display Color | 16.7M |
Brightness | 350nits |
Backlight | LED |
Viewing Angles(CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 20ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optinal |
Signal Connector | VGA/DVI-D/HDMI/Audio |
Power Input | DC 12V |
Touch Controller | USB |
Dimension(VxHxT)mm | 449.1x274.2x47 |
Operating Temperature | -20~70℃(non-condensation) |
Storage Temperature | -20~70℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
