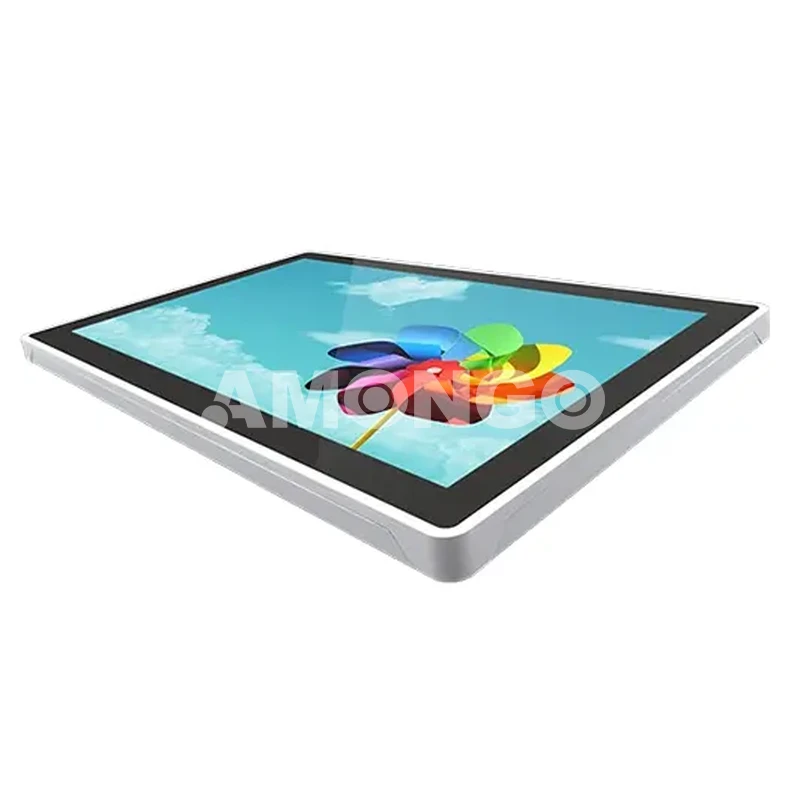

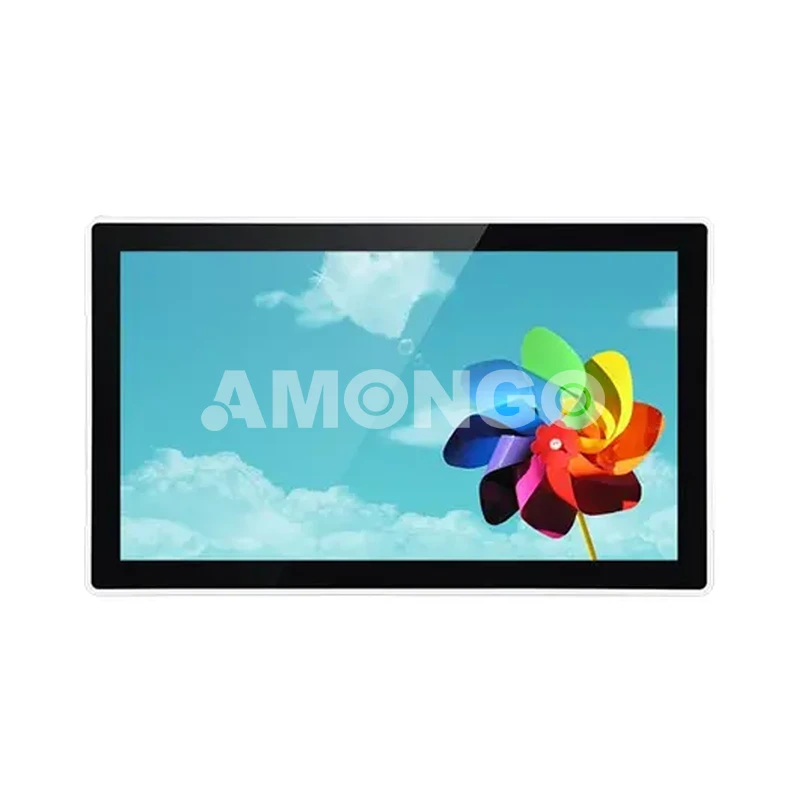

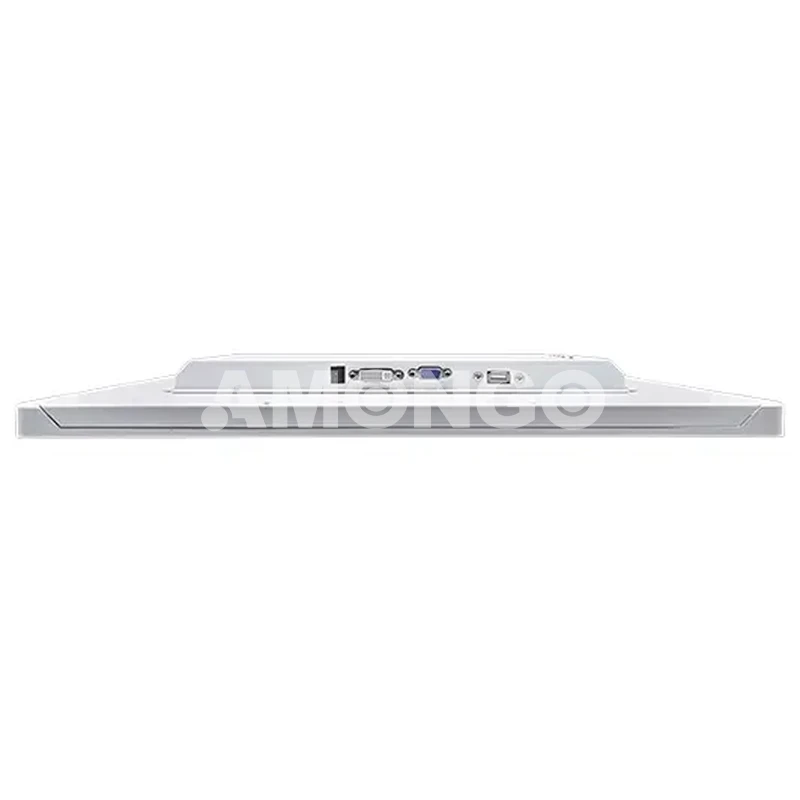

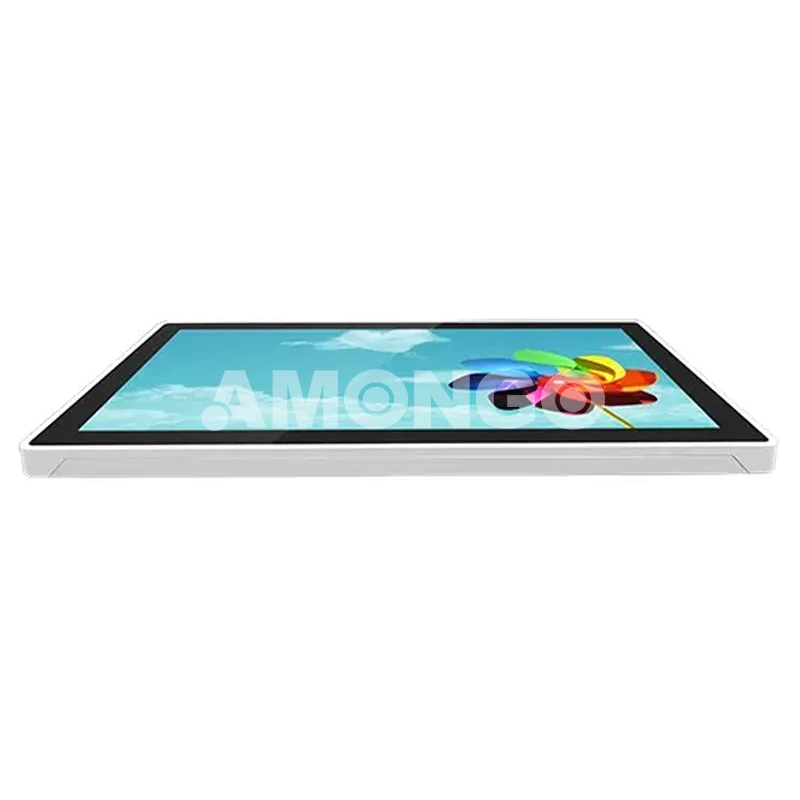

Model Name | AMG-18IPSJ01T1 |
Screen Size | 18.5” |
Active Display Area(mm) | 409.8(H)x230.4(V) |
Pixel Pitch(mm) | 0.3(H)x0.3(V) |
Display Resolution (pixel) | 1366x768 |
Contrast Ratio | 1000:1 |
Aspect Ratio | 16:9 |
Touch screen(optional) | PCAP Touch(10 points) |
Brightness (cd/㎡) | 250/350/450nits |
Backlight | LED |
Viewing Angles (CR=10) | 170(H)x160(V) |
Dimension(VxHxT) | 255x150x236(stretching) |
Touch Interface | USB |
Input Voltage | DC12V |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | 0～50℃(non-condensation) |
Storage Temperature | -20～65℃(non-condensation) |
Relative Humidity | 5(%RH)～90(%RH) |
