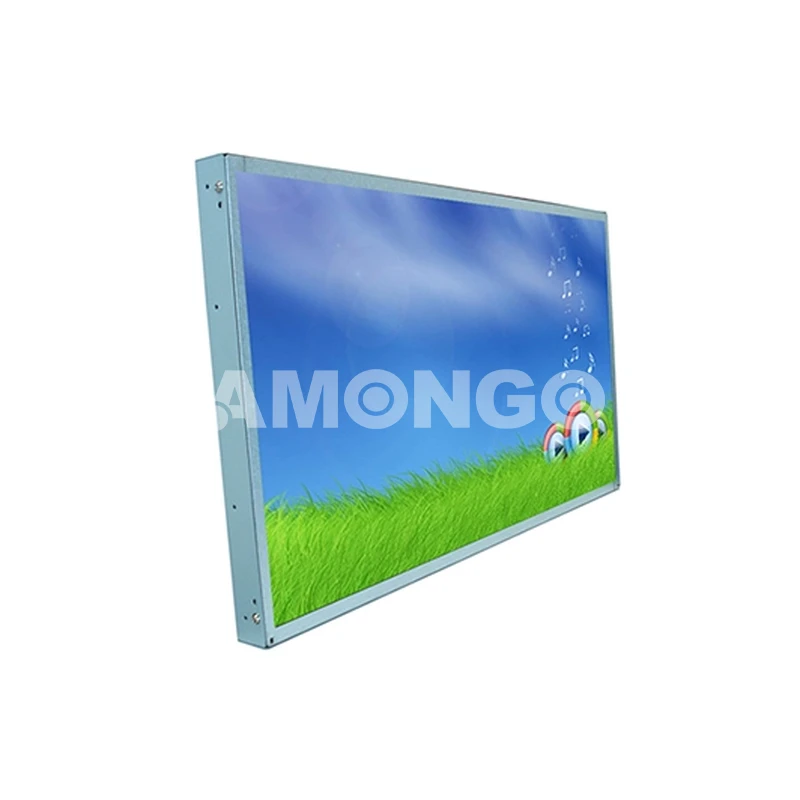

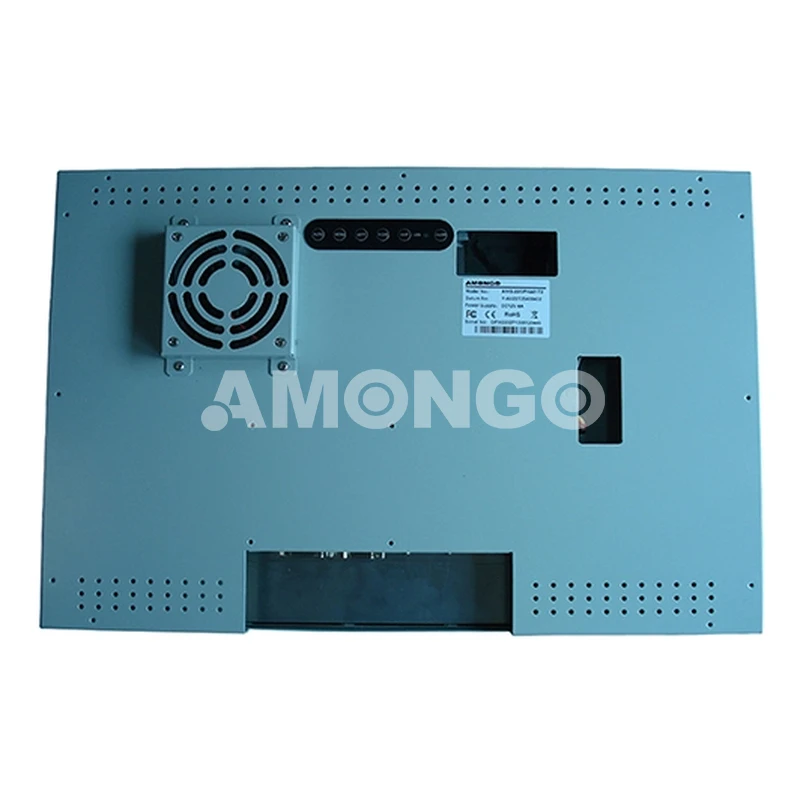

AMG-22OPHA01T2
1680x1050 pixels
Brightness:300 nits
Resistive Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements
Customization solution available
Model Name | AMG-22OPHA01T2 |
Screen Size | 22" |
Active Display Area (mm) | 473.76 (H) x 296.1 (V) |
Pixel Pitch (mm) | 0.282 (H) x 0.282 (V) |
Display Mode | Normally Black |
Display Resolution (pixel) | 1680x1050 |
Contrast Ratio | 1000：1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 300 |
Backlight | LED |
Viewing Angles (CR =10) | 178 (H); 178(V) |
Response Time(Typ.Tr+Tf) | 20ms |
Signal Connector | VGA/DVI/DC 2.0 |
Power Consumption | DC 12V |
Dimension(VxHxT) | 532x322.6x60.5 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen(Optional) | IR / Resistive |
