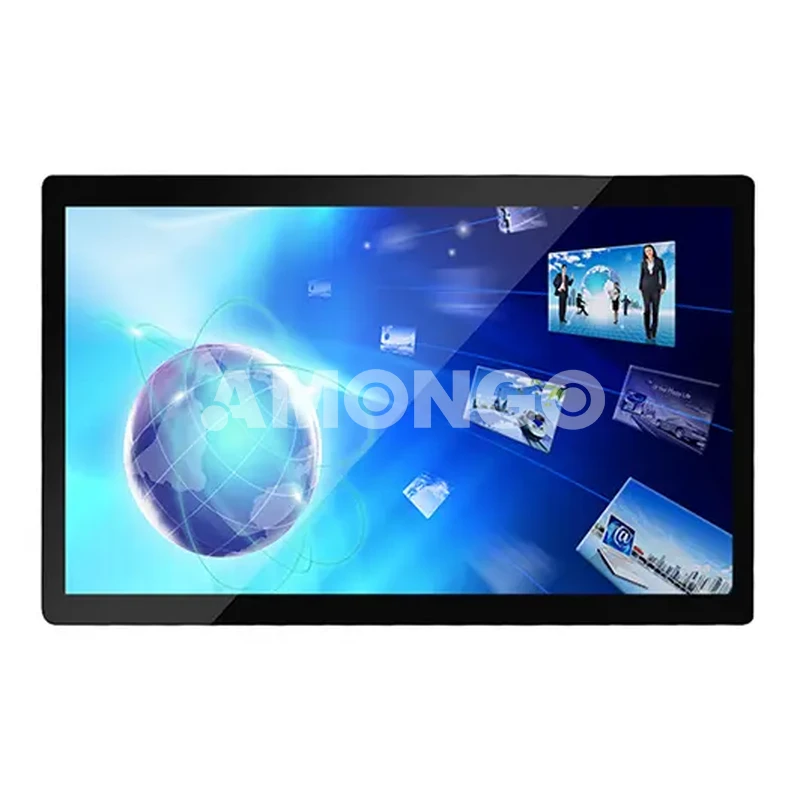

The 24 inch industrial panel pc AMG-24PPC01T4 offered by Amongo is welcomed by customers worldwide for different applications with features as below:
Flat-screen design with high-end branded TFT LCD panels with LED backlight, lower power consumption, better image effect and wider view angles;
Fan-less cooling system with reliable Intel processor, industrial-grade components adopted to ensure continuously running;
Bezel-less pcap touchscreen, rapid touch response, better user experience;
IP65 front protection, dustproof, built to enhance and manage all industrial processes;
Option of tempered glass for vandal proof function;
Robust casing and structure design to withstand the most harsh conditions, anti-vibration, anti-shock;

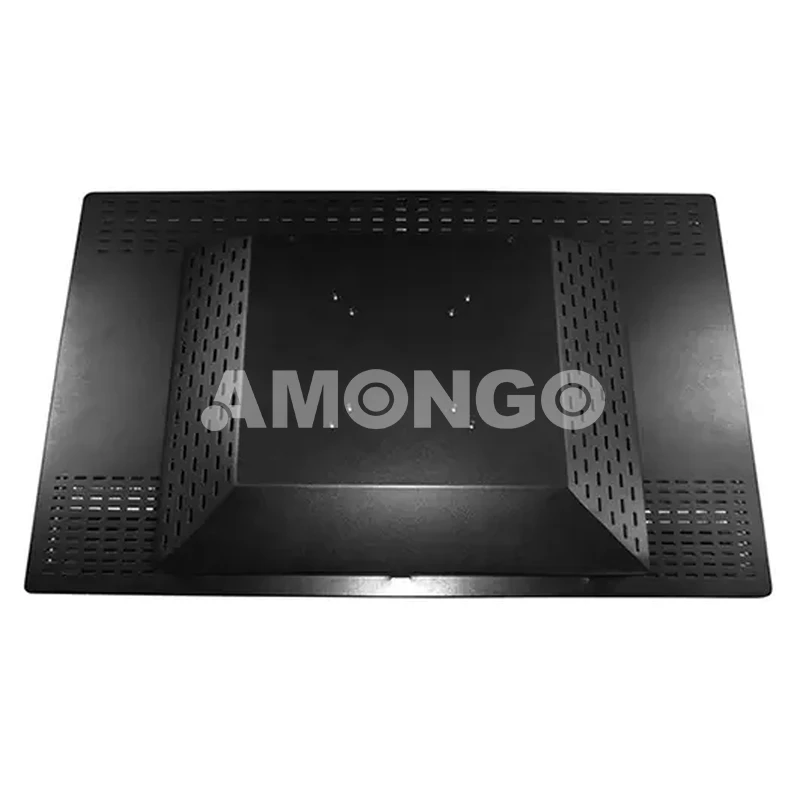

Different mounting options: VESA mount, embedded mount etc.
Supporting various operation system of Windows, Android, Linux etc.;
Meet with reliability test for demanding industrial applications;
Passed necessary certificates like CE, RoHS, and ISO 9001 and 14001 etc.
Model Name | AMG-24PPC01T4 |
CPU | Intel Bay Trail J1900 CORES 4 2.0GHz |
Memory | DDR3L 1333/1066 4GB(optional) |
HDD | HDD 1TB ST1000LM014 2.5 SATA |
PS/2 Port | PS/2 mouse and keyboard port |
VGA port | 1x VGA port |
HDMI port | 1x HDMI port |
COM ports | 2x COM ports |
USB 2.0 ports | 4x USB 2.0 |
Ethernet ports | 2x10/100/1000BASE-T Gigabit Ethernet |
Audio | Mic-in,Line-out |
Display Size | 24" |
Display Resolution(pixel) | 1920x1080 |
Brightness(cd/㎡) | 250 |
Contrast Ratio | 1000:1 |
Pixel Pitch(mm) | 0.27675x0.27675 |
Viewing Angle(CR=10) | 170(H);160(V) |
Backlight | LED |
Type | PCT Touch(10 points) |
Input Voltage | +12V 5～8A |
Output Rating | 65W(Max) |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
