Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
Wide range of touchscreen technologies including PCAP, Resistive, IR etc
igh-end mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Customization service available

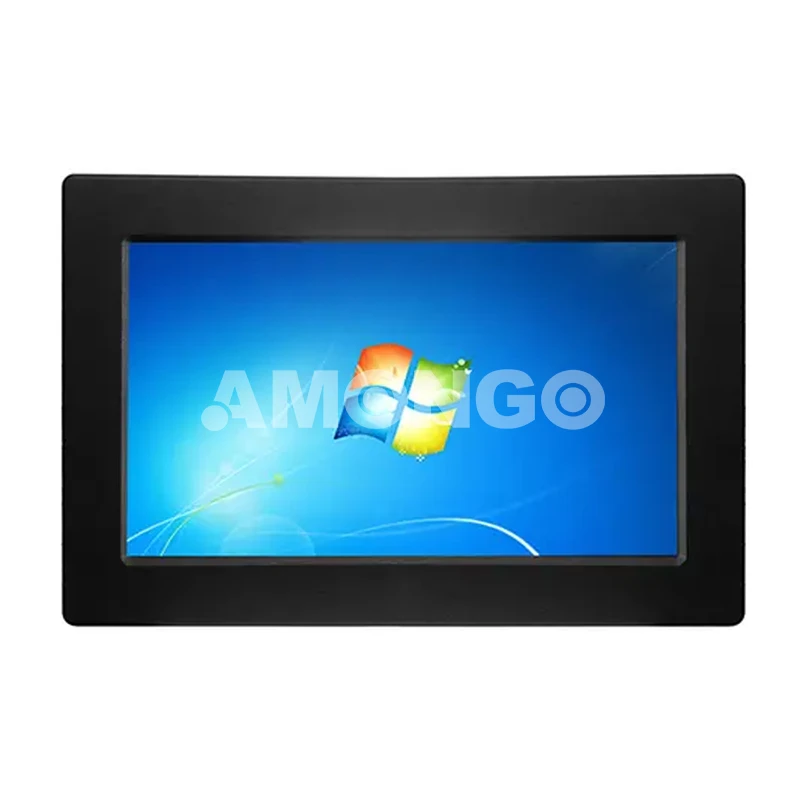

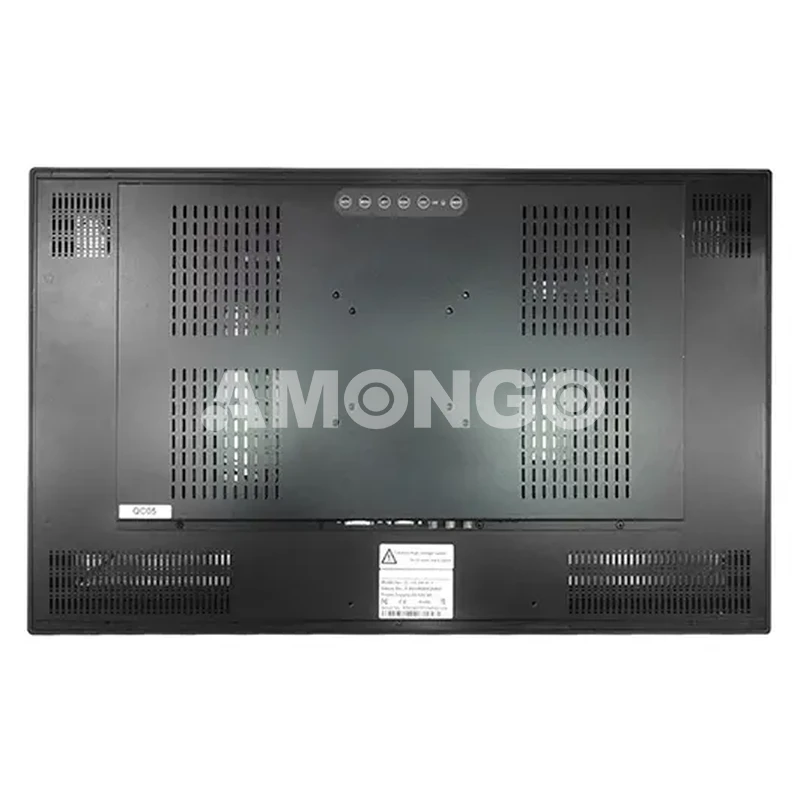

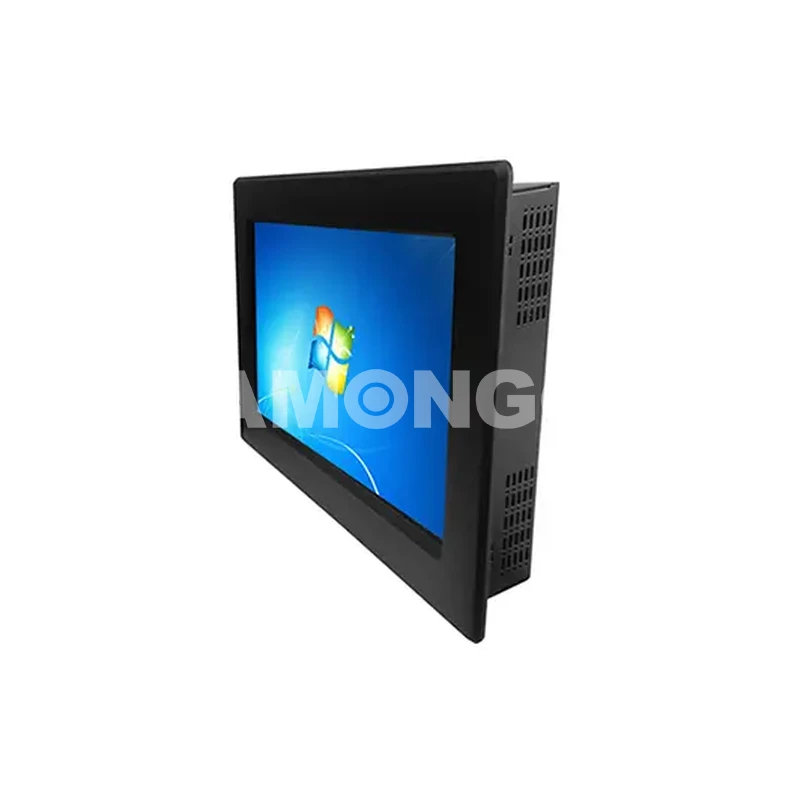

Model Name | AMG-24IPPC01N1 |
Screen Size | 24" |
Active Display Area (mm) | 531.36(H)x298.89(V) |
Pixel Pitch (mm) | 0.27675(H)x0.27675(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1920X1080 |
Contrast Ratio | 1000:1 |
Display Color | 16.7M Colors |
Brightness (CD/㎡) | 300 |
Backlight | LED |
Viewing Angles (CR =10) | 170Hx160V |
Response Time(Typ.Tr+Tf) | 5ms |
Signal Connector | VGA/DVI/HDMI/AV/S-Video/Audio |
Power Consumption | DC 12V |
Dimension(VxHxT) | 636X403.5X62.9 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen | Optional |
