Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements,
Customization service is available

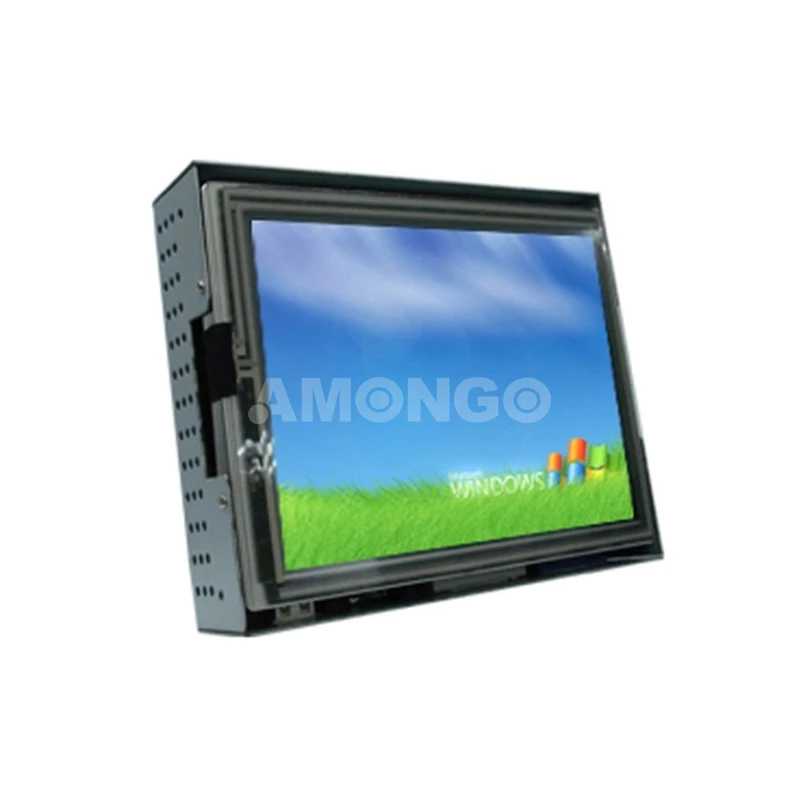

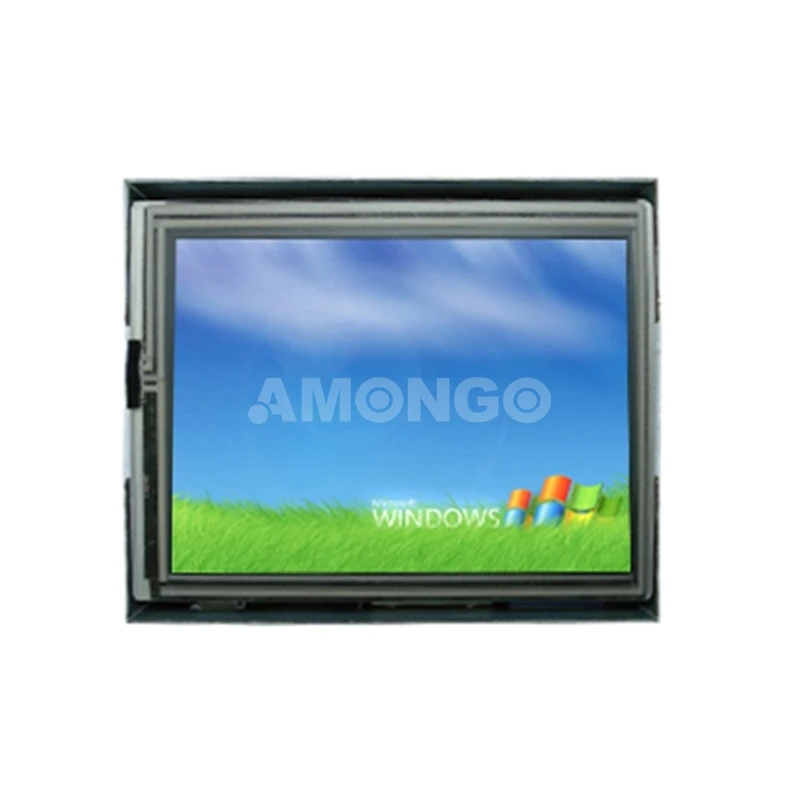

Model Name | AMG-06OPHA01T1 |
Screen Size | 6.5" |
Active Display Area (mm) | 132.48 (H) x 99.36 (V) |
Pixel Pitch (mm) | 0.207(H) x 0.207 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 640x480 |
Contrast Ratio | 600:1 |
Display Color | 16.2M/262K colors |
Brightness (CD/㎡) | 500 |
Backlight | LED |
Viewing Angles (CR =10) | 140 (H); 120 (V) |
Response Time(Typ.Tr+Tf) | 25ms |

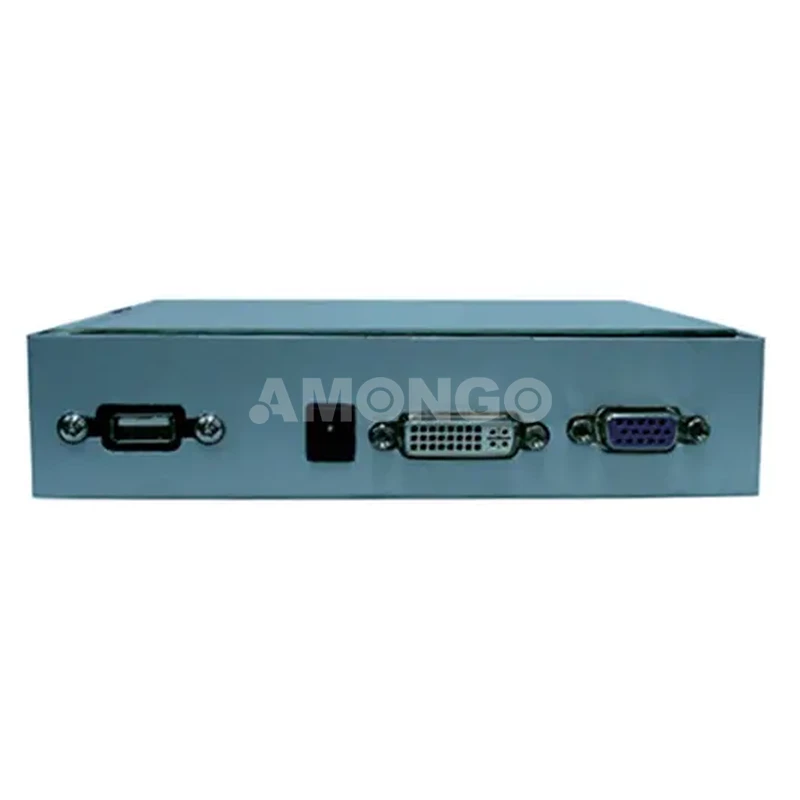

Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 156x130x37.4 |
Operating Temperature | -20～70℃ |
Storage Temperature | -20～80℃ |
Relative Humidity | 5(%RH)～90(%RH) |
