Branded LCD panels with perfect image quality and wide viewing angles
High performance Intel processor, fast access hard drives, long-life power supplies;
Various touchscreen technologies, like PCAP, Resistive, IR etc.;
Rugged structure design with front IP65 aluminum bezel for waterproof;
Easy installation for panel mount or embedded mount;
Suitable used as operator panel for machine control;
Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.

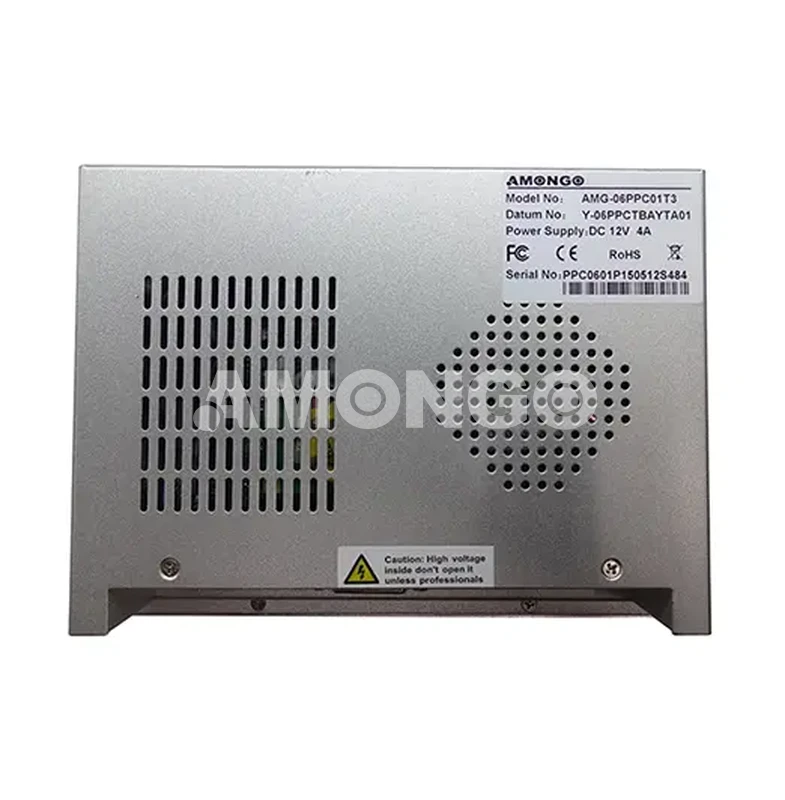

Model Name | AMG-06PPC01T3 |
CPU | Intel ® Bay Trail-M N2930 SOC Processor 1.83G |
Memory | DDR3L 1333MHz 4GB |
HDD | M-sata 32G |
DVI port | 1xDVI port |
COM ports | 4xCOM (optional) |
USB ports | 3xUSB2.0 (1xUSB 3.0) |
Ethernet ports | 2xRTL8111G PCI-E Gigabit LAN |
Audio | 1xLine-out port |
Display Size | 6.5" |
Active Display Area(mm) | 132.48(H)x99.36(V) |
Max Resolution | 640x480 |
Support Color | 16.2M/262K colors |
Luminance(CD/M2) | 600 |
Contrast Ratio | 600:1 |
Pixel Pitch (mm) | 0.207(H)x0.207(V) |
Display Mode | Normally White |
Viewing Angle | 160(H);140(V) |
Backlight | LED |
Type | Resistive Touchscreen |
Use connector | 4pin USB2.0 |
Input Voltage | DC 9-24V IN |
Output Rating | 20W(max) |
Dimension(VxHxT) | 208x158x53 |
Operating Temperature | -30～80℃ |
Storage Temperature | -30～80℃ |
Relative Humidity | 5[%RH]～90[%RH] |
