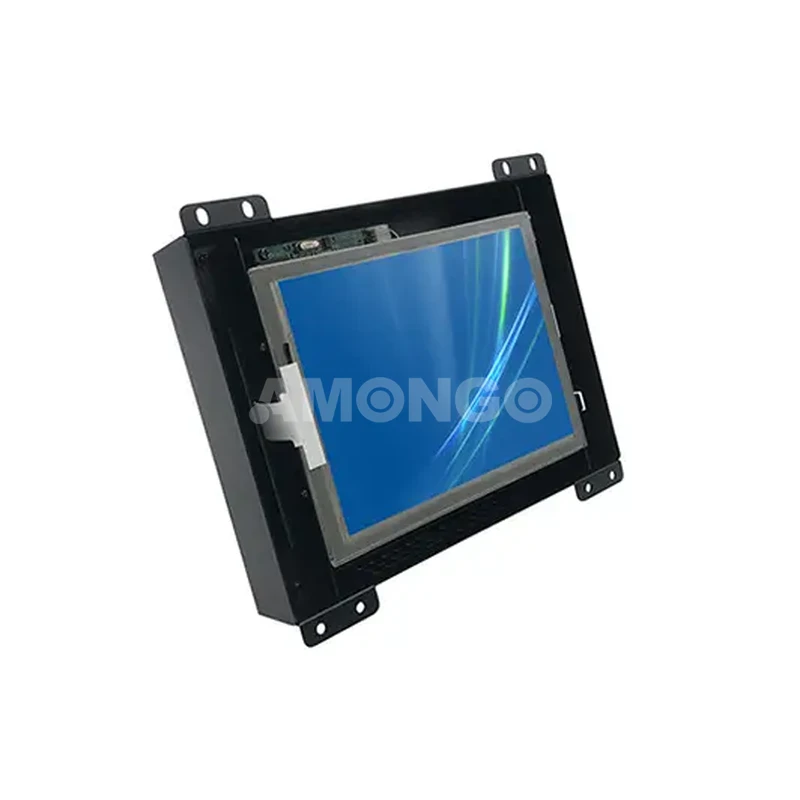

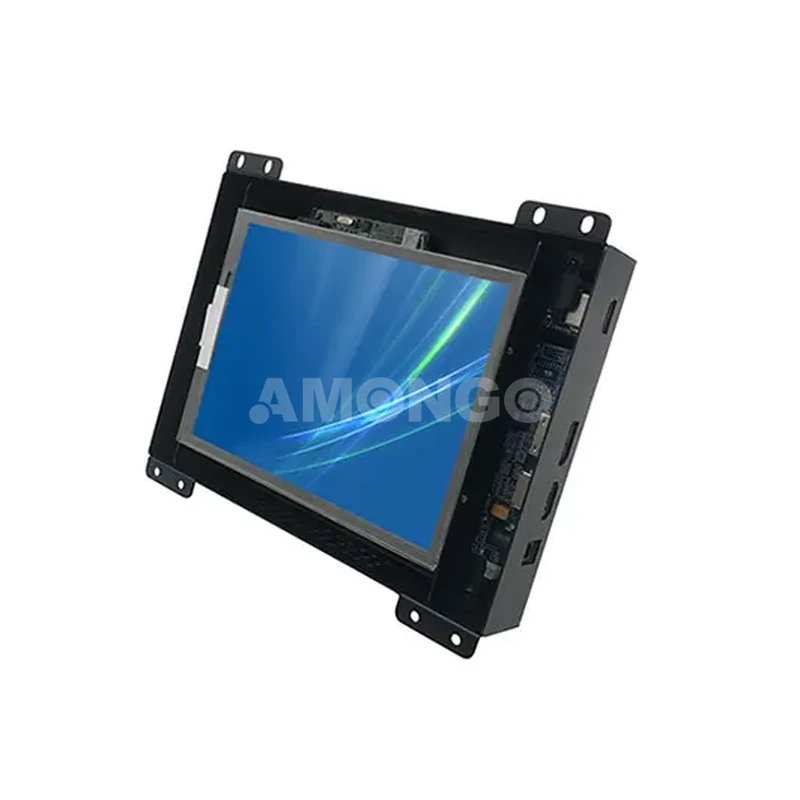

The open frame industrial grade rack mount LCD monitor AMG-06IPPR01T1 offered by Amongo is a good choice for application in demanding environment
Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7 long time operation;
Touchscreen / tempered glass is optional such as PCAP, Resistive etc
Easy-to-install rack mounting enclosures and embedded install;
High brightness / sunlight readable;
Stable quality through high reliability testing;
Customization service available
Model Name | AMG-06IPPR01T1 |
Screen Size | 6.5" |
Active Display Area(mm) | 132.48(H)x99.36(V) |
Pixel Pitch(mm) | 0.207(H)x0.207(V) |
Display Mode | Normally White |
Display Resolution(pixel) | 640x480 |
Contrast Ratio | 16.2M/262K |
Display Color | 600:1 |
Brightness | 800nits |
Backlight | LED |
Viewing Angles(CR=10) | 160(H);140(V) |
Response Time(Typ.Tr+Tf) | 25ms |
Touch Screen | Resistive touch(5 wire) |
Light Sensor | Optional |
Tempered glass | Optional |
Dimension(VxHxT) | 199.5x170x36.2 |

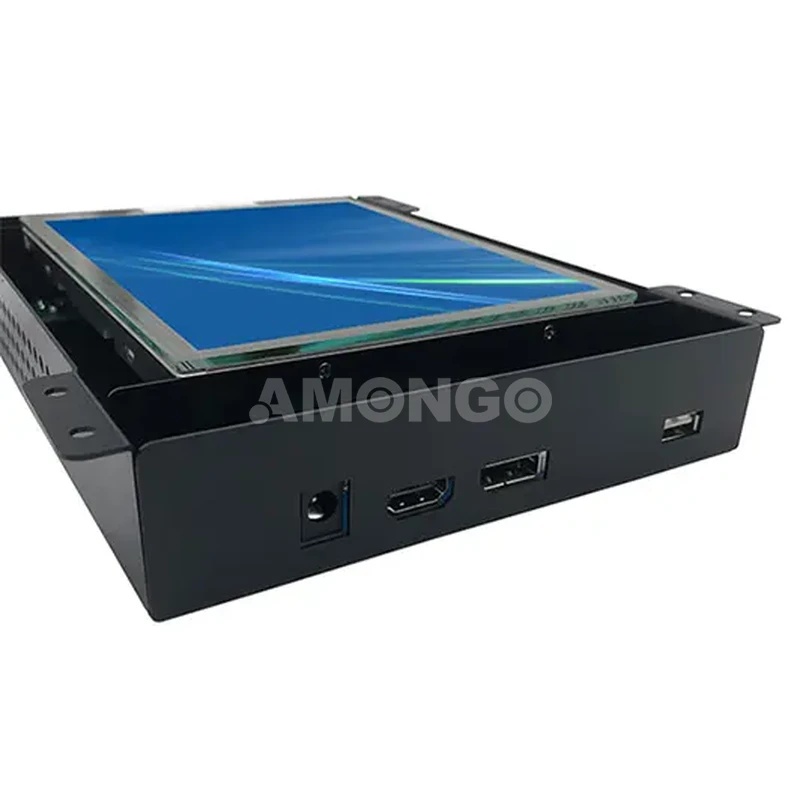

Signal Connector | HDMI/DP |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | -30~80℃(non-condensation) |
Storage Temperature | -30~80℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
