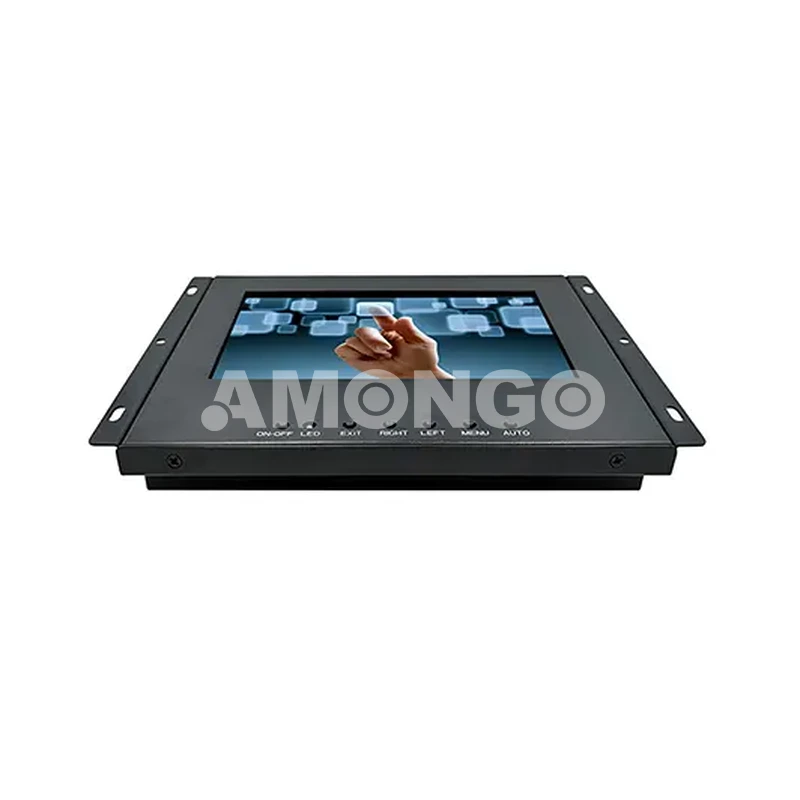

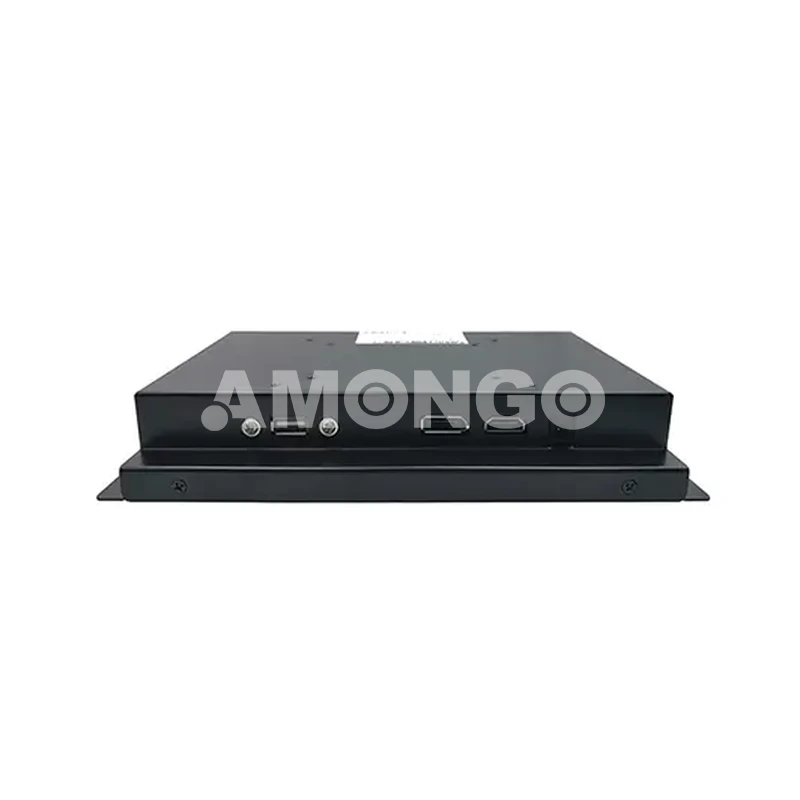

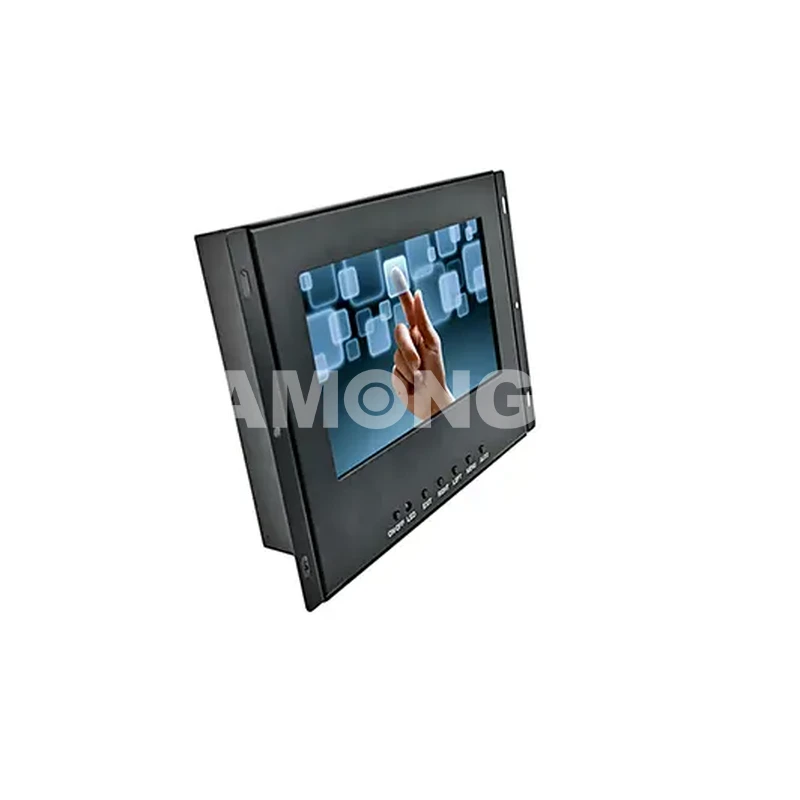

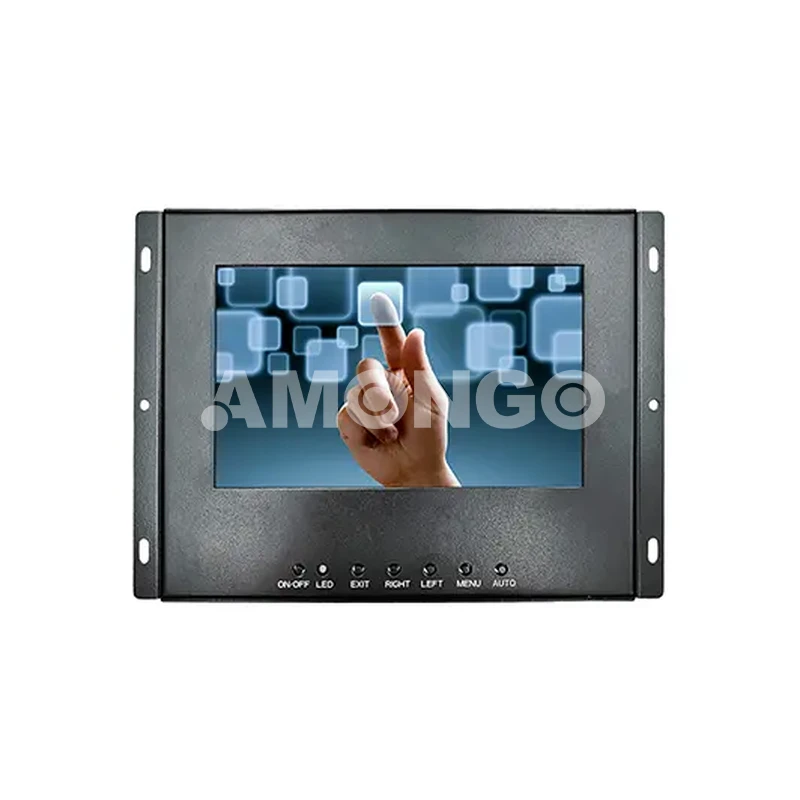

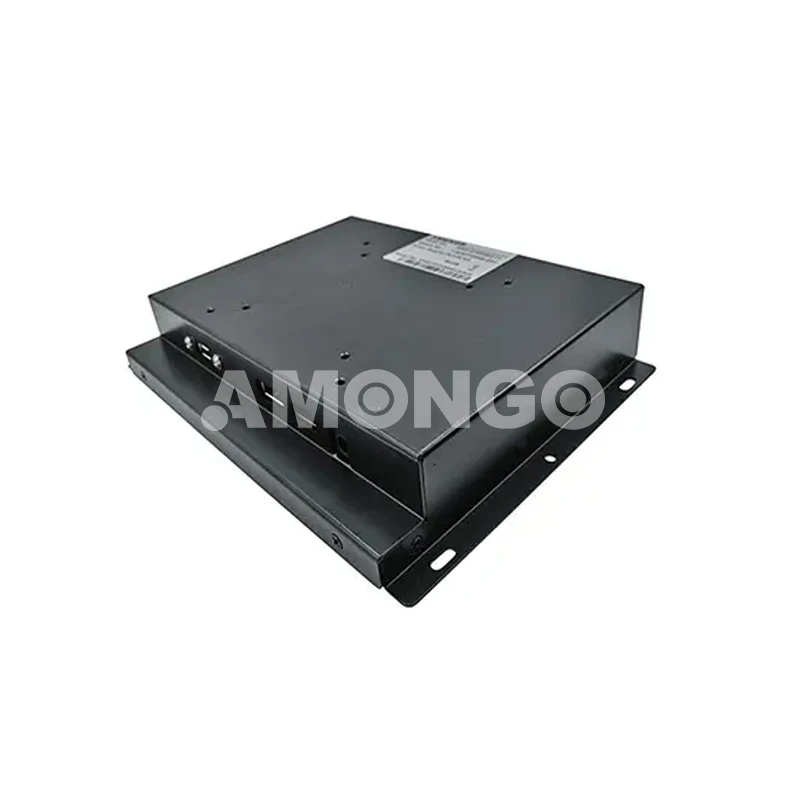

The 7 inch rack mount industrial monitor AMG-07IPDB01T1 newly customized by Amongo Display is a suitable choice for applications with demanding environment
Branded industrial LCD panels with perfect image quality and long life span, industrial-grade components designed for long time operation;
Advanced capacitive touch technology adopted, surface Mohs 7 hardness;
Robust mechanical design to ensure stable quality and function in harsh working conditions.
Easy-to-install with rack mounting enclosures and vesa holes
Wide temperature operation supported
Model Name | AMG-07IPDB01T1 |
Screen Size | 7" |
Active Display Area(mm) | 153.6(H)x90.0(V) |
Pixel Pitch(mm) | 0.15(H)x0.15(V) |
Display Resolution (pixel) | Normally White |
Contrast Ratio | 1024x600 |
Display Mode | 16.7M/262K |
Touch screen(optional) | 800:1 |
Brightness (cd/㎡) | 350nits |
Backlight | LED |
Viewing Angles (CR=10) | 150(H);145(V) |
Response Time(Typ.Tr+Tf) | 16ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optional |
Dimension(VxHxT) | 224x162x35 |
Signal Connector | HDMI/DP |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | -20～60℃(non-condensation) |
Storage Temperature | -30～70℃(non-condensation) |
Relative Humidity | 5(%RH)～90(%RH) |
