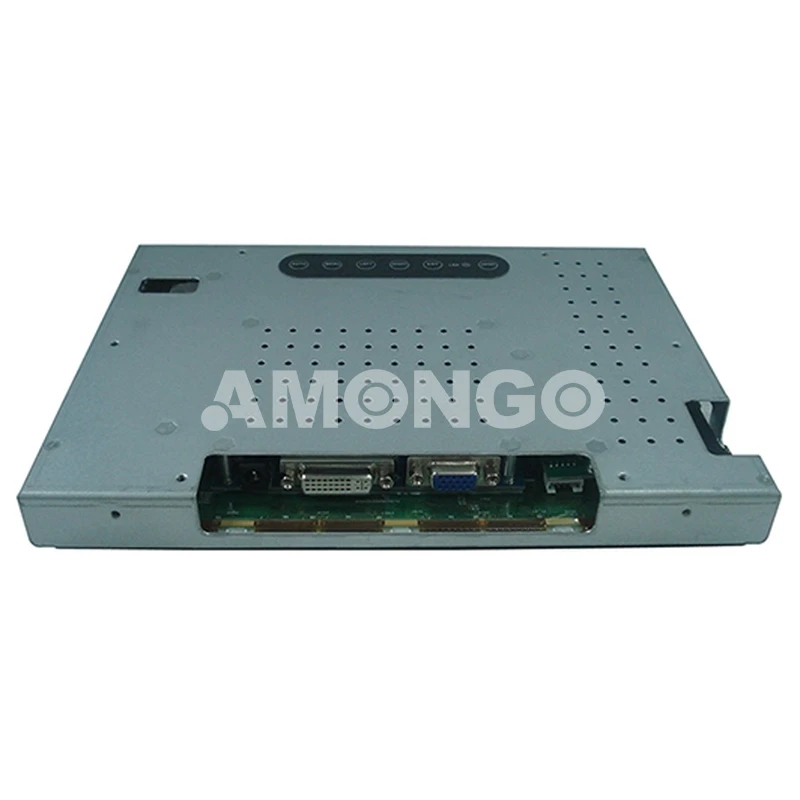

AMG-08OPHA02N1
800x600 pixels
Brightness:200 nits
Resistive Touch
For: ATM/Kiosk
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements
Customization service is available
Model Name | AMG-08OPHA02N1 |
Screen Size | 8.4" |
Active Display Area (mm) | 170.4(H) x127.8(V) |
Pixel Pitch (mm) | 0.213(H) x 0.213 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800x600 |
Contrast Ratio | 500:1 |
Display Color | 262K colors |
Brightness (CD/㎡) | 200 |
Backlight | LED |
Viewing Angles (CR =10) | 130(H); 110 (V) |
Response Time(Typ.Tr+Tf) | 35ms |
Signal Connector | VGA/DVI |
Power Consumption | DC 12V |
Dimension(VxHxT) | 210x149x25 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
