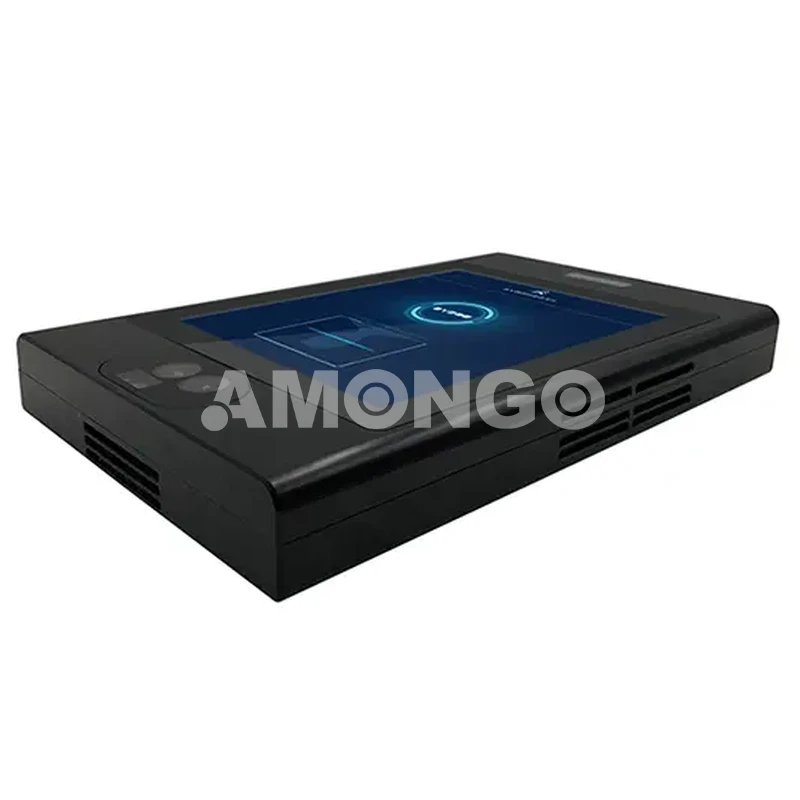

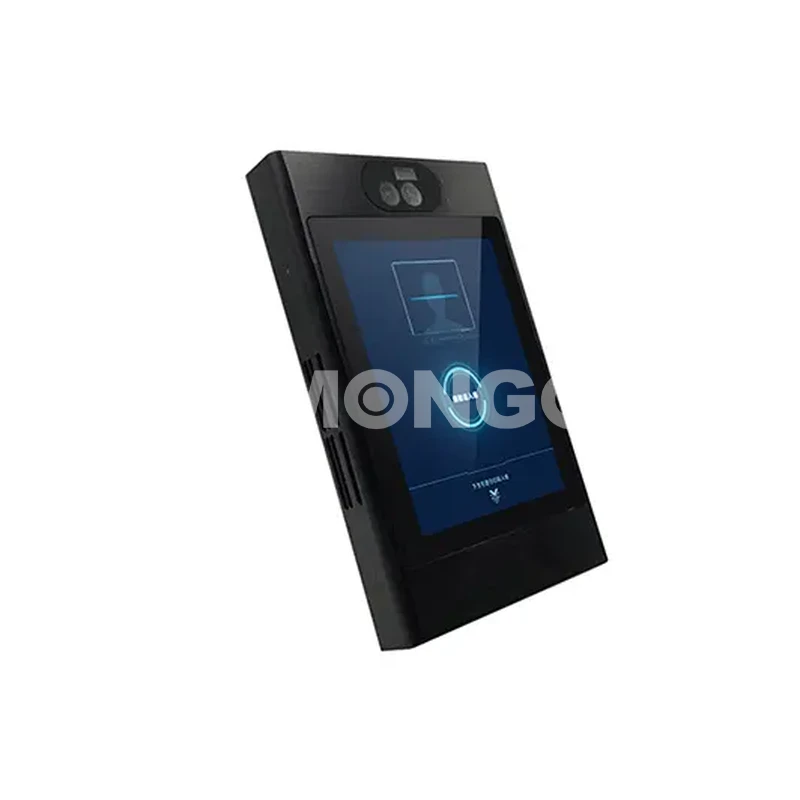

The 8 inch android based all-in-one panel pc AMG-08PPC02T1 from Amongo is carrying with the following benefits:
Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;
High-quality industrial-grade components used throughout to maintain the highest MTBF’s;
8 inch 10-points PCAP touchscreen panel;
HD Binocular camera used for entry control with facial recognition;
Up-to-date Android main board supporting customization application;
Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.
Model Name | AMG-08PPC02T1 |
CPU | RK3399 Dual Cortex A72+Quad core A53 64bit CPU |
RAM | 2GB(4GB Optional) |
ROM | 16GB(8GB/32GB/64GB optional) |
USB ports | 2x USB 3.0 |
LAN | 2x 10/100/1000Base-T Gigabit Ethernet |
Auido | Line out |
TF Card | Support |
OS | Android 7.1 |
3G/4G | 3G/4G PCI-E interface, Support Internet / Voice calls |
WiFi / Bluetooth | 2.4+5G dual-band WiFi dual antenna, Bluetooth 4.0 |
Screen Size | 8" |
Active Area(mm) | 162.05(H)x121.54(V) |
Pixel Pitch(mm) | 0.15825(H)x0.05275(V) |
Display Resolution | 1024x768 |
Display Color | Normally Black |
Brightness | 300nits |
Contrast Ratio | 800:1 |
Touch Screen | PCAP Touch(10 points) |
HD Camera | Support |
Dimension(VxHxT)mm | 168x274x38.5 |
Operating Temperature | -20~60℃(non-condensation) |
Storage Temperature | -30~70℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
