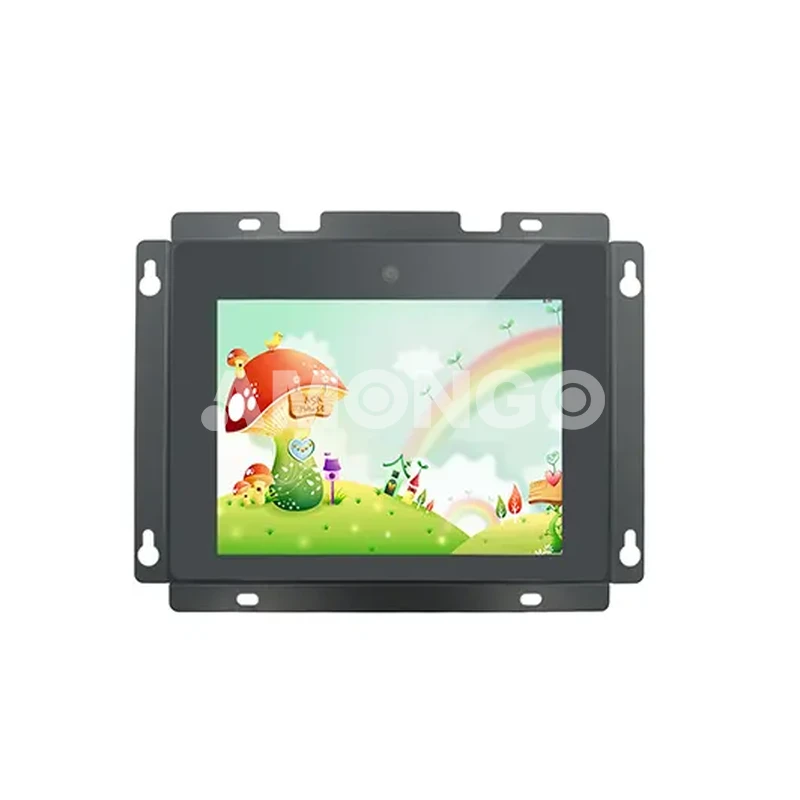

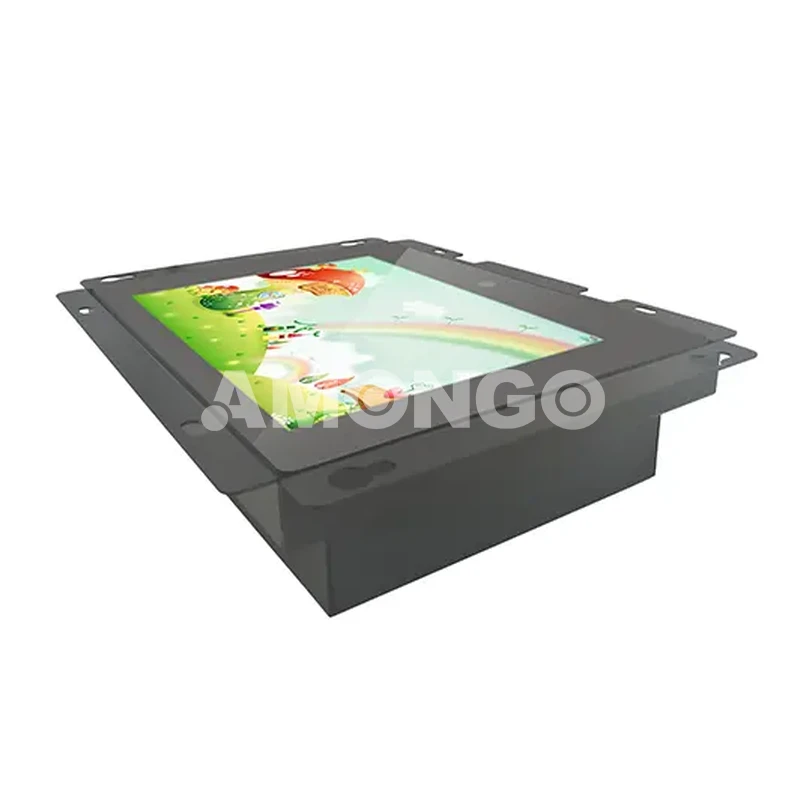

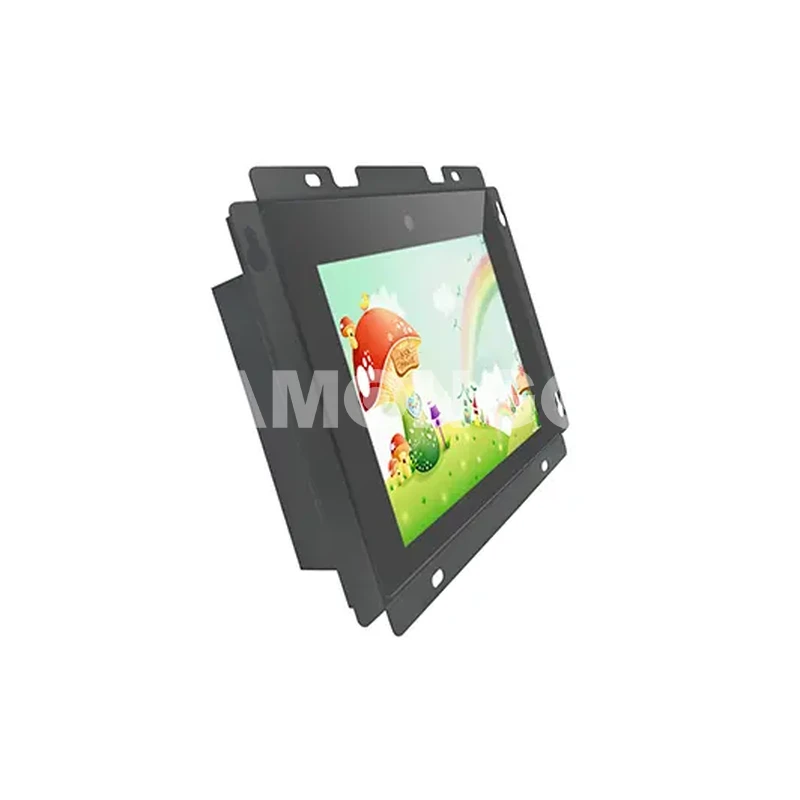

The 8.4 inch android based all-in-one panel pc AMG-08PPC01T1 from Amongo is built with the following features:
Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;
High-quality industrial-grade components used to ensure a trouble-free operation;
8.4 inch 10-points PCAP touchscreen panel with HD camera;
4G/3G, Ethernet, WiFi, GPS, Bluetooth functions optional;
Light sensor added for energy saving and brightness auto-dimming;
Front IP65 waterproof, dustproof, easy for installation and maintenance;
Up-to-date Android main board support applications related with IIoT;
Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.
Model | AMG-08PPC01T1 |
CPU | RK3368 Eight Core ARM-A53 1.5GHz |
RAM | 2GB(4GB optional) |
ROM | 8GB(16/32GB optional) |
OS | Android 5.1.1 |
VGA Port | 1 x VGA |
USB Ports | 2 x USB |
Ethernet | 4G/3G, Ethernet, WiFi, GPS, Bluetooth optional |
SD Card | Support |
HD Camera | Support |
Audio | Mic-in, Line-out |
Screen Size | 8.4" |
Active Area(mm) | 170.4(H)x127.8(V) |
Pixel Pitch(mm) | 0.213(H)x0.213(V) |
Display Resolution | 800x600 |
Display Color | Normally White |
Brightness(cd/㎡) | 350nits (Light Sensor) |
Contrast Ratio | 600:1 |
Backlight | LED |
Viewing Angles | 160(H);140(V) |
Response Time(Tr+Tf) | 16ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Support |
Dimension(VxHxT)mm | 443.2x387x45.5 |
Operating Temperature | -20~70℃(Non-conctensation) |
Storage Temperature | -30~80℃(Non-conctensation) |
Relative Humidity | 5~90(%RH) |
