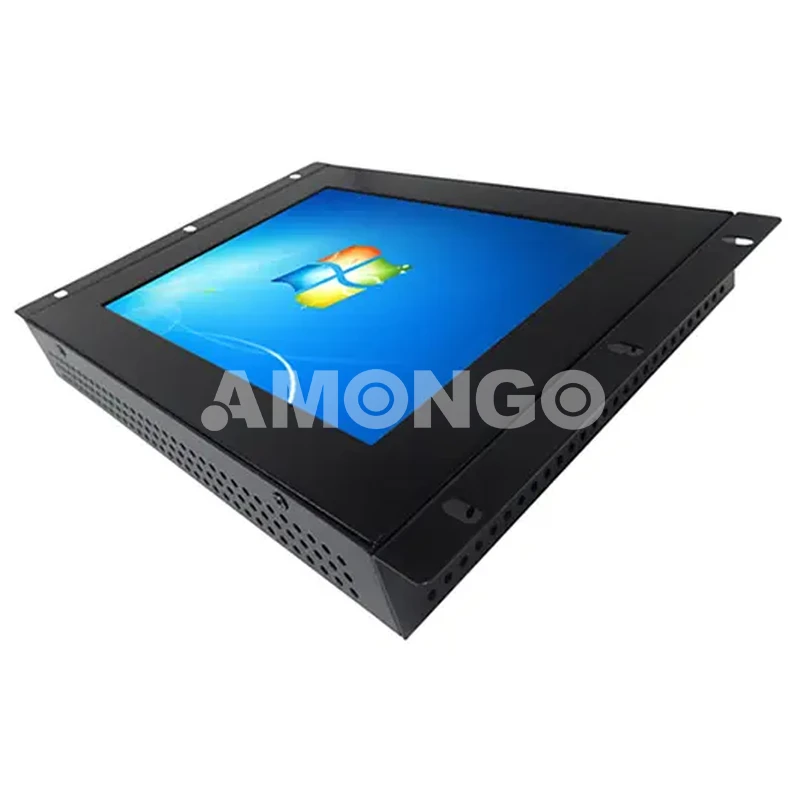

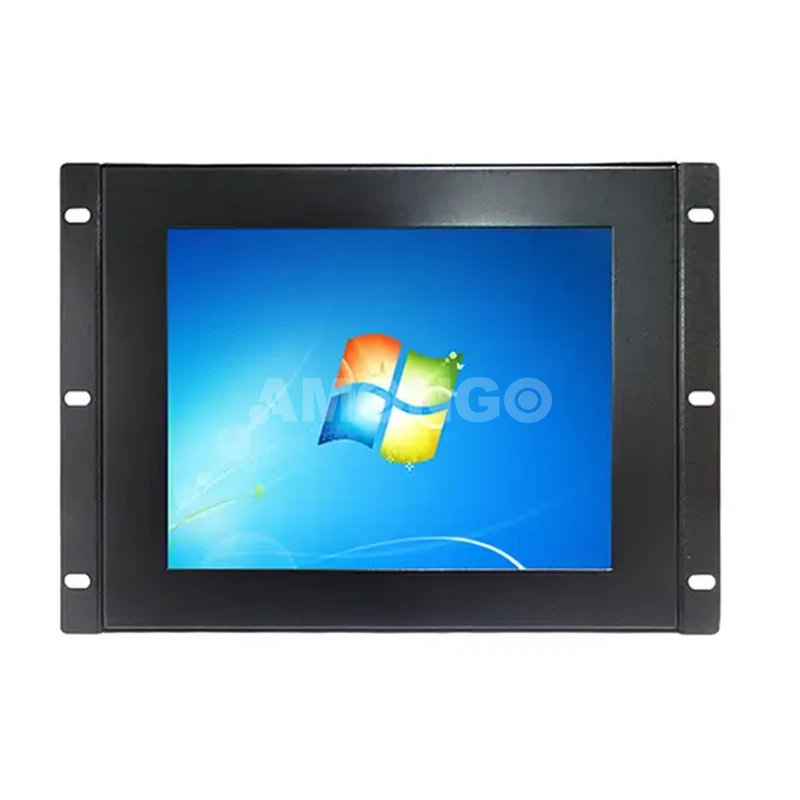

The industrial grade rack mount LCD monitor AMG-08IPZY03T1 offered by Amongo is a good choice for application in demanding environment
Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
Touchscreen is optional such as PCAP, Resistive etc
Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel to meet tough environmental conditions and requirements;
Easy-to-install with rack mounting enclosures.
Customization service available
Model Name | AMG-08IPZY03T1 |
Screen Size | 8.4" |
Active Display Area (mm) | 170.4(H)x127.8(V) |
Pixel Pitch (mm) | 0.213(H)x0.213(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800X600 |
Contrast Ratio | 600:1 |
Display Color | 262K |
Brightness (CD/㎡) | 1000 |
Backlight | LED |
Viewing Angles (CR =10) | 150(H)x150(V) |
Response Time(Typ.Tr+Tf) | 35ms |
Signal Connector | VGA/DVI/USB |
Power Consumption | DC2.0 |
Dimension(VxHxT) | 255X178X31.5 |
Operating Temperature | -30～85℃ |
Storage Temperature | -30～85℃ |
Relative Humidity | 5(%RH)～90(%RH) |
