Model Name | AMG-09IPGD02T1 |
Screen Size | 9.7" |
Active Display Area (mm) | 196.61(H)x147.46(V) |
Pixel Pitch (mm) | 0.192(H)x0.192(V) |
Display Mode | Normally black |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 900:1 |
Display Color | 16.2M |
Brightness (CD/㎡) | 260nits |
Backlight | LED |
Viewing Angles (CR =10) | 170(H);170(V) |
Response Time(Typ.Tr+Tf) | 20ms |

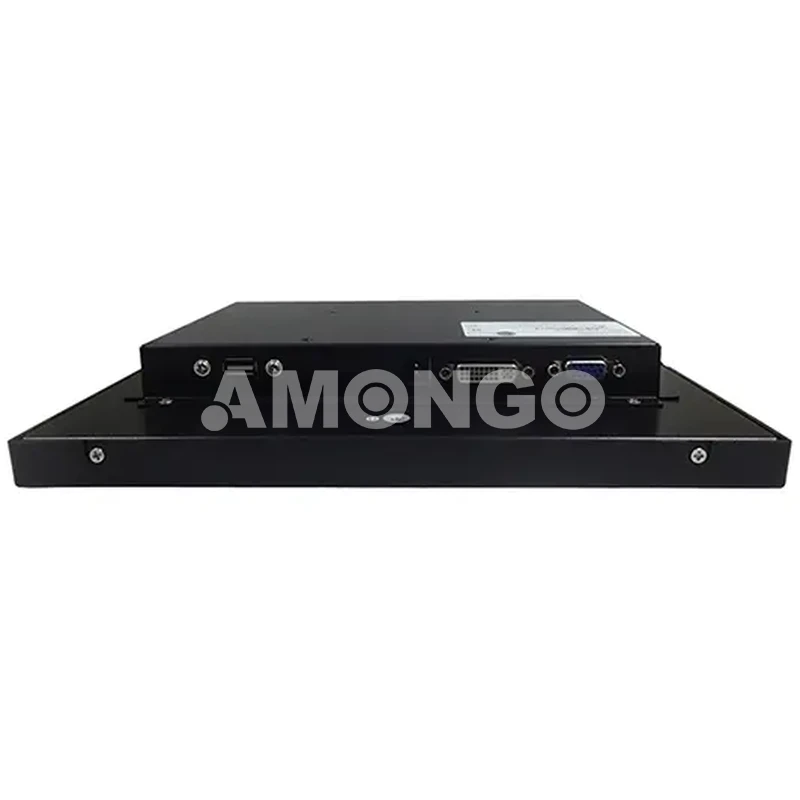

Signal Connector | VGA/DVI-D/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 259x215x38.8 |
Operating Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
Relative Humidity | 5(%RH)~90(%RH) |
Touch Screen | PCAP Touch(10 points) |
