Convex full flat fillet design
PCAP multi-touchscreen(10 points)
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7, scratch resistant
High brightness / light sensor
Starting at low temperature, stable quality
Application:
Kiosk/Industrial automation etc
Aluminum profile front frame
PCAP Multi-touch screen
Optical bonding technology
IP65 Waterpfoof, Dust-proof,Vandal-proof
High reliability test,stable performance
Application:
AFC/ Industrial equipment / Kiosk
| Technical Specification | |
| LCD | |
| Model Name | AMG-10OPGD01T1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 211.2(H)x158.4(V) |
| Pixel Pitch(mm) | 0.20625(H)x0.20625(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 900:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 150(H);150(V) |
| Response Time（Typ.Tr+Tf） | 16ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Optional |
| Tempered glass | Optional |

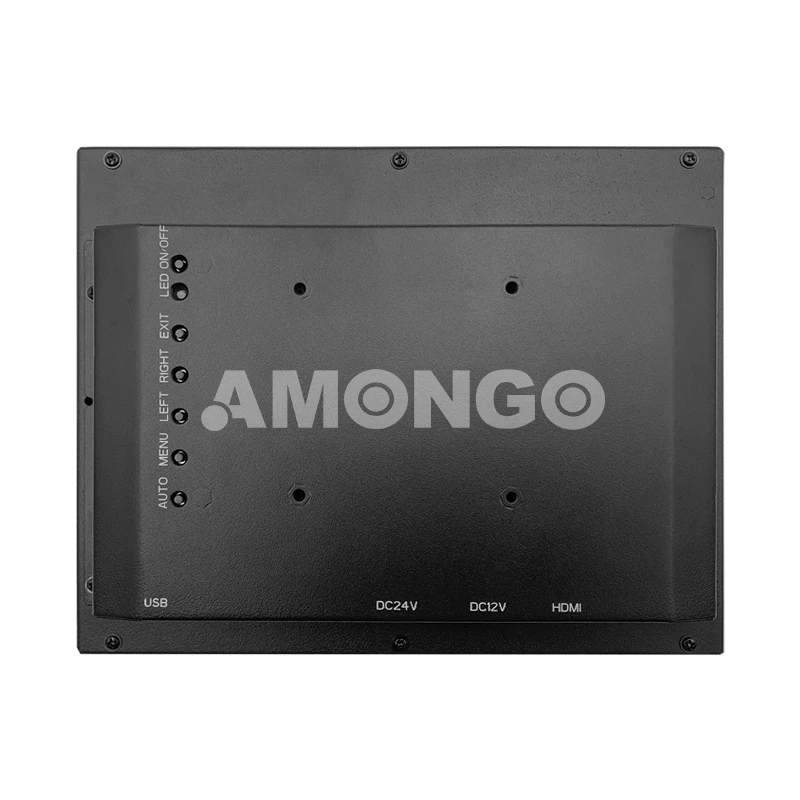

| I/O Interface | |
| Signal Connector | HDMI |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 248.8*199.6*36.9 |
| Environmental | |
| Operating Temperature | -10~60℃（non-condensation） |
| Storage Temperature | -30~80°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
