6mm Tempered glass,PCAP Multi-touch
High brightness,Light Sensor
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7,scratch resistant
High Reliability and Long Lifetime
Application:
AFC/ Industrial equipment / Kiosk
6mm Tempered glass,PCAP Multi-touch
High brightness,Light Sensor
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7,scratch resistant
High Reliability and Long Lifetime
Application:
AFC/ Industrial equipment / Kiosk
| Technical Specification | |
| LCD | |
| Model Name | AMG-15OPTE01T4 |
| Screen Size | 15" |
| Active Display Area(mm) | 376.32(H)x301.06(V) |
| Pixel Pitch(mm) | 0.297(H)x0.297(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 800:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 160(H);160(V) |
| Response Time（Typ.Tr+Tf） | 8ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Tempered glass | Support |

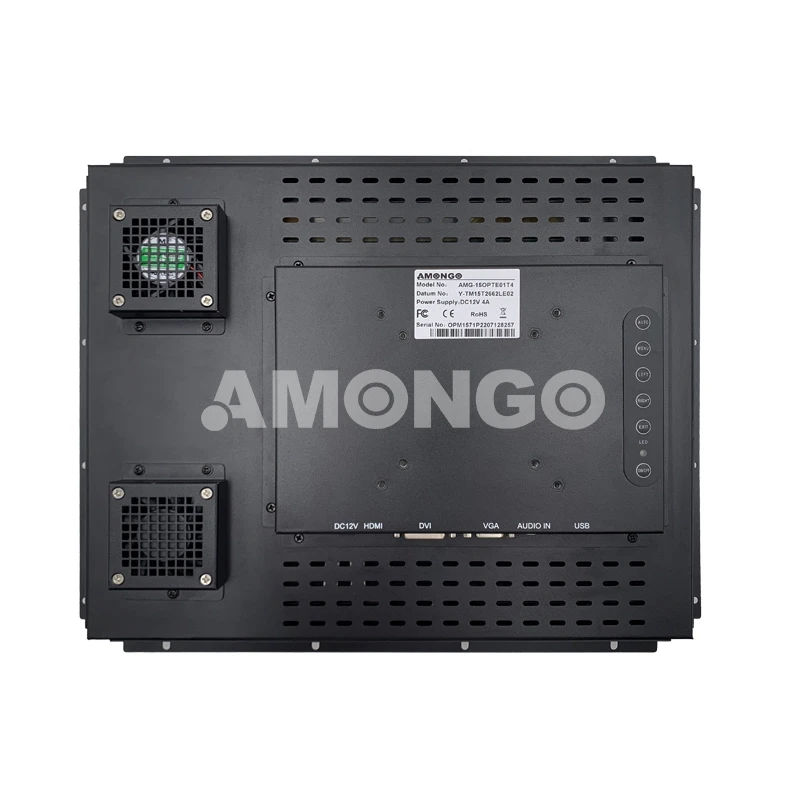

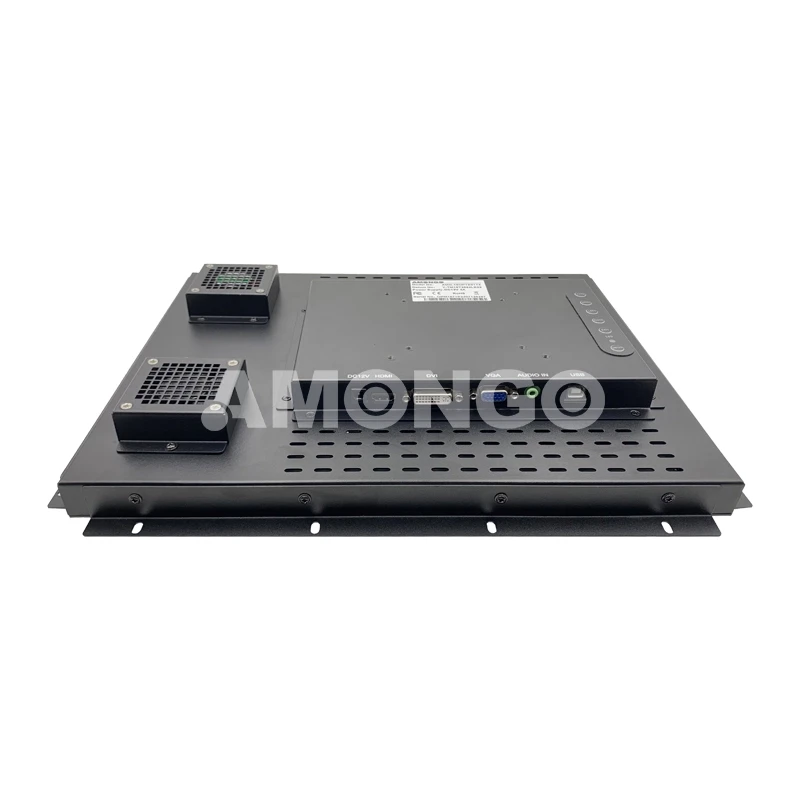

| I/O Interface | |
| Signal Connector | VGA/DVI-D/HDMI/Audio |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 395.6*322.6*23 |
| Environmental | |
| Operating Temperature | -20~70℃（non-condensation） |
| Storage Temperature | -30~80°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
