PCAP Multi-touch screen
Full flat fillet design
IP 65 waterproof,dust-proof,vandal-proof
Support for embedded,VESA installation
Stable quality through high reliability testing
Application:
AFC/Recyling machine/ Industrial automation etc
PCAP Multi-touch screen
Full flat fillet design
IP 65 waterproof,dust-proof,vandal-proof
Support for embedded,VESA installation
Stable quality through high reliability testing
Application:
AFC/Recyling machine/ Industrial automation etc
| Technical Specification | |
| LCD | |

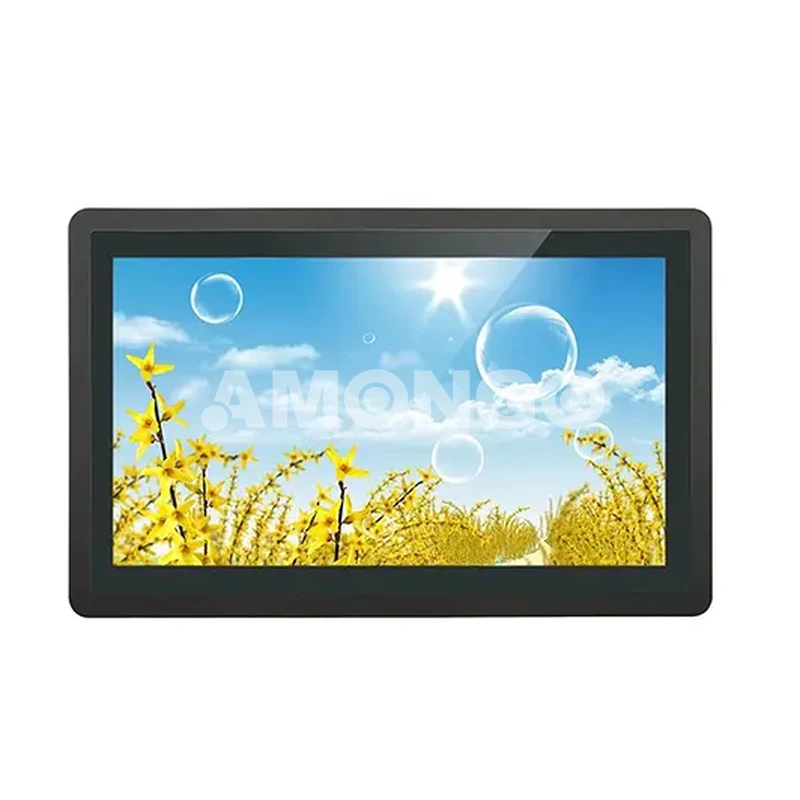

| Model Name | AMG-18IPTL01T1 |
| Screen Size | 18.5" |
| Active Display Area(mm) | 409.8(H)x230.4(V) |
| Pixel Pitch(mm) | 0.3(H)x0.3(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1366x768 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 800nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 170(H);160(V) |
| Response Time（Typ.Tr+Tf） | 5ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Optional |
| Privacy Film | Optional |
| I/O Interface | |
| Signal Connector | VGA/DVI |
| Power Consumption | DC 9V-36V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 480*308*57.8 |
| Environmental | |
| Operating Temperature | 0~50℃（non-condensation） |
| Storage Temperature | -20~60℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
