Convex full flat fillet design
PCAP multi-touchscreen(10 points)
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7, scratch resistant
High brightness / light sensor
Starting at low temperature, stable quality
Application:
Kiosk/Industrial automation etc
Convex full flat fillet design
PCAP multi-touchscreen(10 points)
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7, scratch resistant
High brightness / light sensor
Starting at low temperature, stable quality
Application:
Kiosk/Industrial automation etc
| Technical Specification | |
| LCD | |

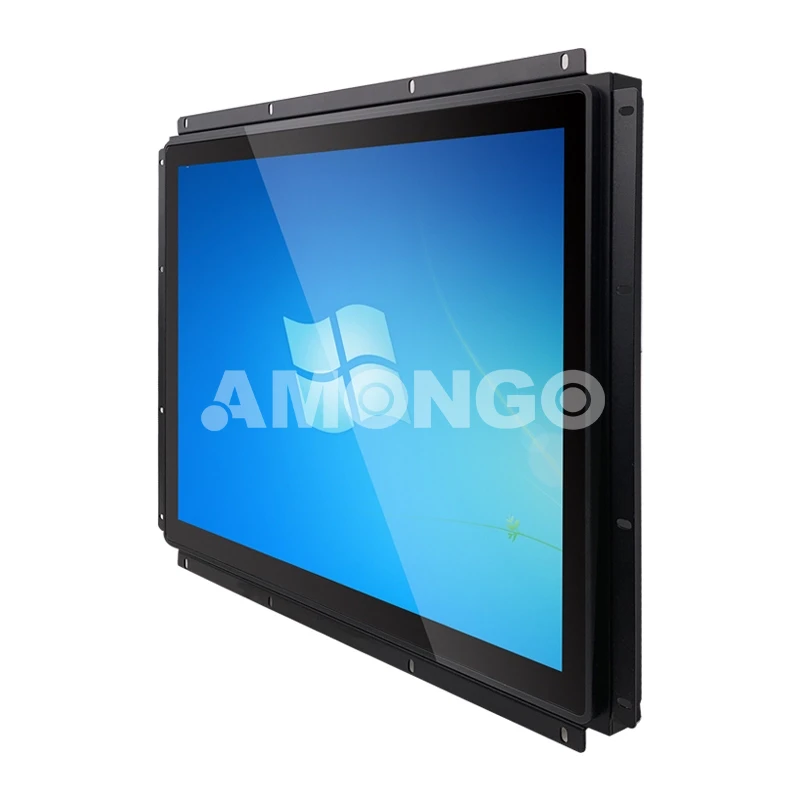

| Model Name | AMG-19OPTE01T3 |
| Screen Size | 19" |
| Active Display Area(mm) | 376.32(H)x301.06(V) |
| Pixel Pitch(mm) | 0.294(H)x0.294(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1280x1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 170(H);160(V) |
| Response Time（Typ.Tr+Tf） | 10ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Tempered glass | Support |
| I/O Interface | |

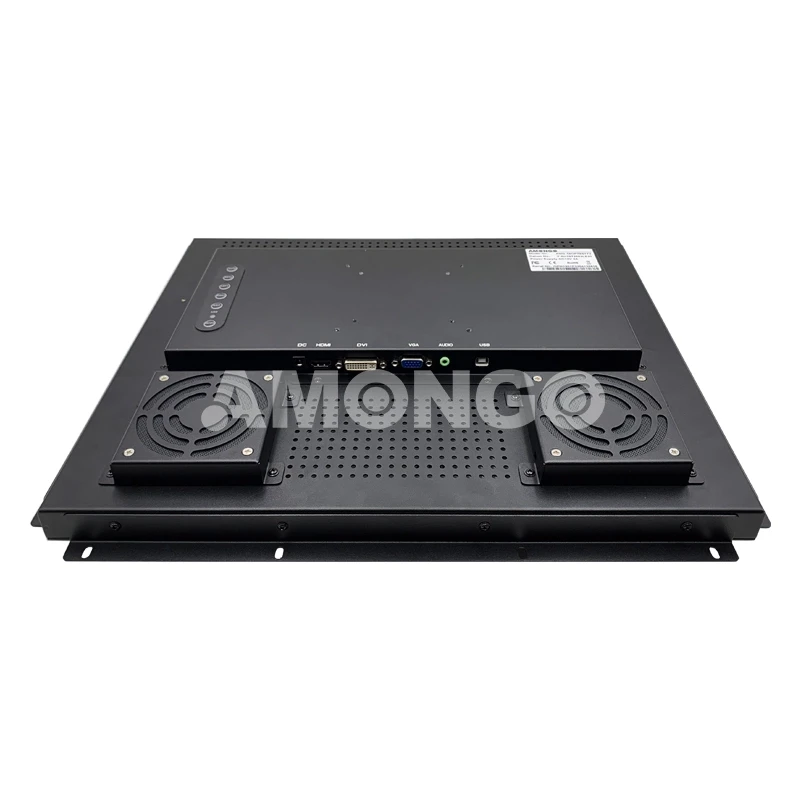

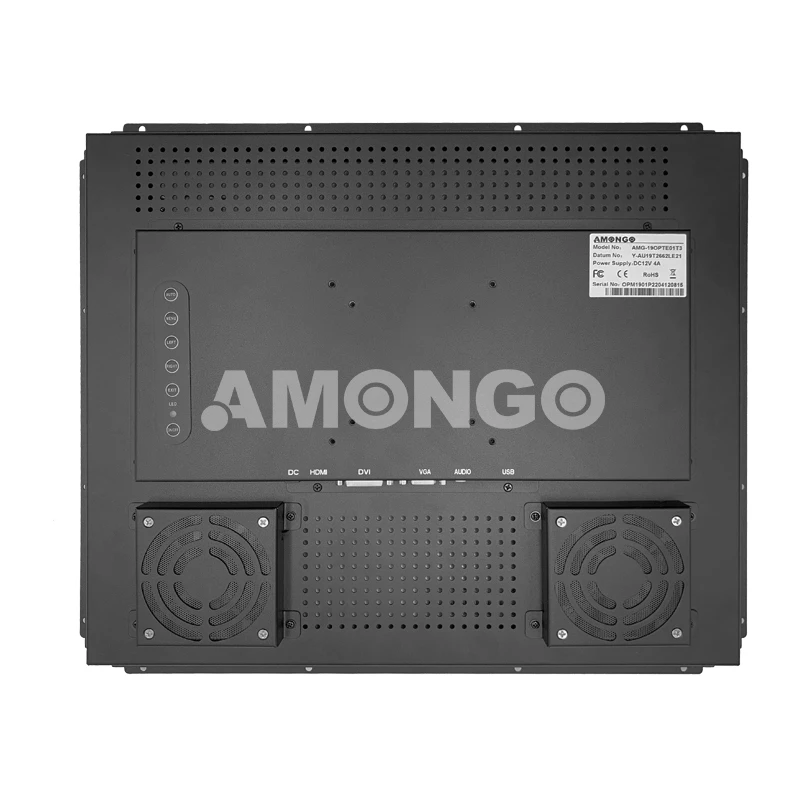

| Signal Connector | VGA/DVI/HDMI/Audio |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 429.4*357.4*23 |
| Environmental | |
| Operating Temperature | -30~85℃（non-condensation） |
| Storage Temperature | -30~85°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
