Model no. | AMG-896 |
CPU | Intel ® Haswell 1.4GHz/1.6GHz Duo Core CPU |
Chipset | Intel ® Haswell |
BIOS | SPI BIOS |
Architecture | DDR3 MAX 1666 MT/s |
Capacity | MAX 16GB |
Socket | SODIMM |
Graphic Controller | Intel ® HD4000 Graphic media accelerator |
DVI | DVI-I port |
Max. resolution: 4096 * 2304 | |
HDMI | HDMI 1.4 |
Max. resolution: 4096 * 2304 | |
Display Port | DISPLAY PORT++ 1.2, support DP Dangle |
Max. resolution: 3200 * 2000 | |
Multiplex Display | HDMI+DP+DVI Synchronous or asynchronous display |
Controller | LAN 1: Intel ® I210 GbE |
LAN 1: Intel®I210 GbE | |
Realtek HD ALC662 audio decoder(Right &left Channel + Mic) | |
ITE8782, support 4*COM | |
Watch Dog Timer | 0-255 sec., provide watch dog routine |

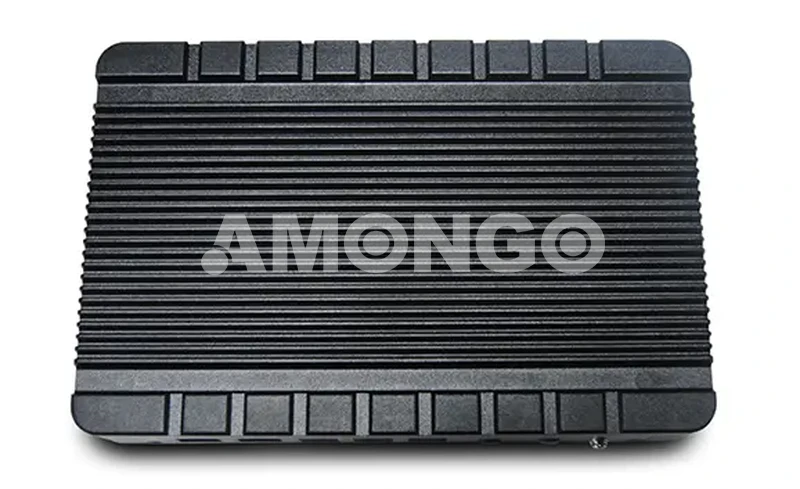

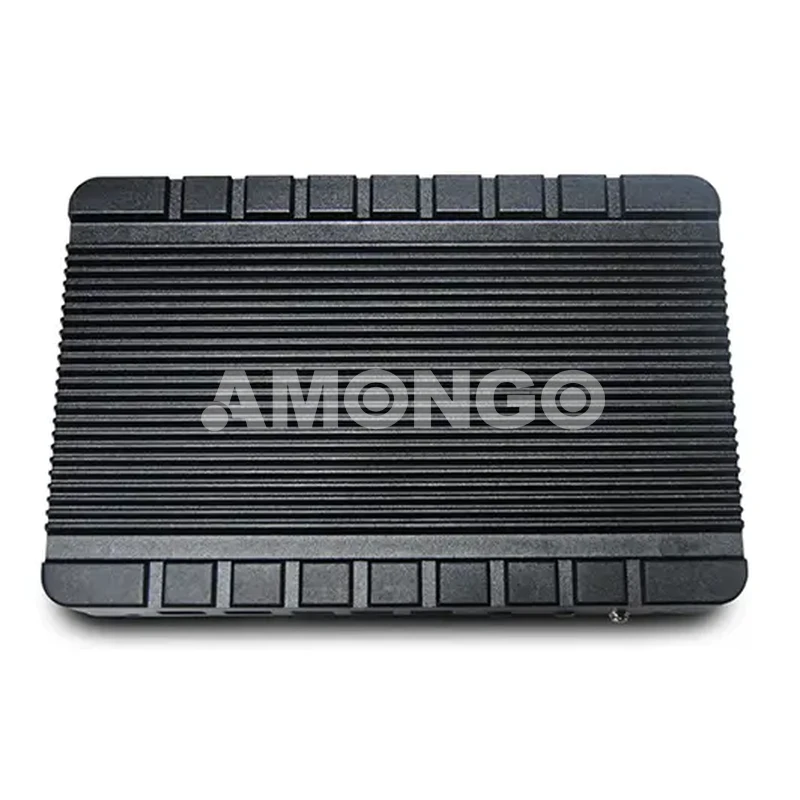

Thermal | Fan-less, Aluminum passive heat sink |
USB | 6*USB (2*USB 3.0 PORT + 4*USB2.0 / 1.1) |
Serial Port | Com1: 9-line RS232,RS232/485 (Optional),TX/RX signal, support 4000Vsurge protection |
Com2-4: 3-line RS232,TX/RX signal, support 4000V surge protection | |
GPIO | 8bits, support routine, freely define I/O,3.3V@24mA level |
SMBUS | Inter integration |
Mini-PCIe | 1* Half-size Mini-PCIe socket, support PCIe & USB devices |
1* Full-size Mini-PCIe socket, support USB 3G/4G communication Module | |
UIM Socket | 3G UIM slot |
SATA | 1* standard 7Pin SATA-III & power port, max. transmission rate:3Gb/s |
Laptop SATA | 7+15Pin |
M-SATA | 1*Half-size m-SATAII socket, max. transmission rate:3Gb/s |
Power Type | DC9-19V extended voltage dynamic input, support reverse,power protection, 3 Pin 5.08mm phoenix port. |
Power Consumption | Typical Power: 15W |
Status Indicator | HDD LED |
POWER LED | |
Operating Temp | -20°C ~ 60°C With SSD; 0°C ~ 40°C With HDD |
Storage Temp | -40°C ~ 80°C |
Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
Storage Humidity | 0% ~ 90% relative humidity, non-condensing |
Dimensions | 210mm * 136mm * 35mm |
Weight | 1.28Kg |
Certificate | FCC, CE, RoHS |
